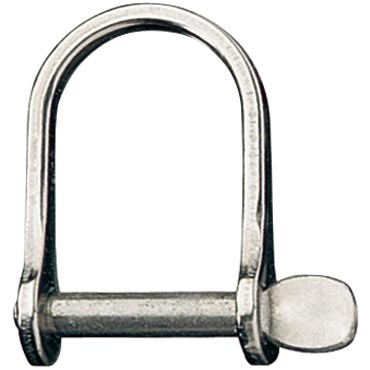

Ronstan RF1853 1/4" Pin Wide D Shackle – 316 Stainless Marine Fitting

The Ronstan RF1853 Wide D Shackle with a 1/4" (6.4mm) pin is a strong, compact, and corrosion-resistant marine shackle designed for small to mid-sized rigging applications. Made from high-grade 316 stainless steel, it offers excellent durability in saltwater environments and is ideal for use on yachts, dinghies, and sailing hardware systems.

With its wide D-shaped body, this shackle provides additional clearance for webbing, dual lines, or oversized hardware, offering more rigging flexibility than standard shackles. Its secure forged construction and polished finish ensure reliable performance and a clean aesthetic.

Specifications:

• Pin Diameter: 6.4mm (1/4")

• Internal Length: 24.0mm

• Internal Width: 17.0mm

• Material: 316 stainless steel

• Breaking Load: 1600kg

• Working Load Limit: 800kg

• Design: Wide D shape for improved clearance

• Applications: Sailing rigging, deck hardware, marine fittings, dual-line setups

Ideal for New Zealand sailors who need a wider shackle for compact spaces or multiple line connections. Available now from Barton Marine NZ, your trusted source for Ronstan rigging hardware.
