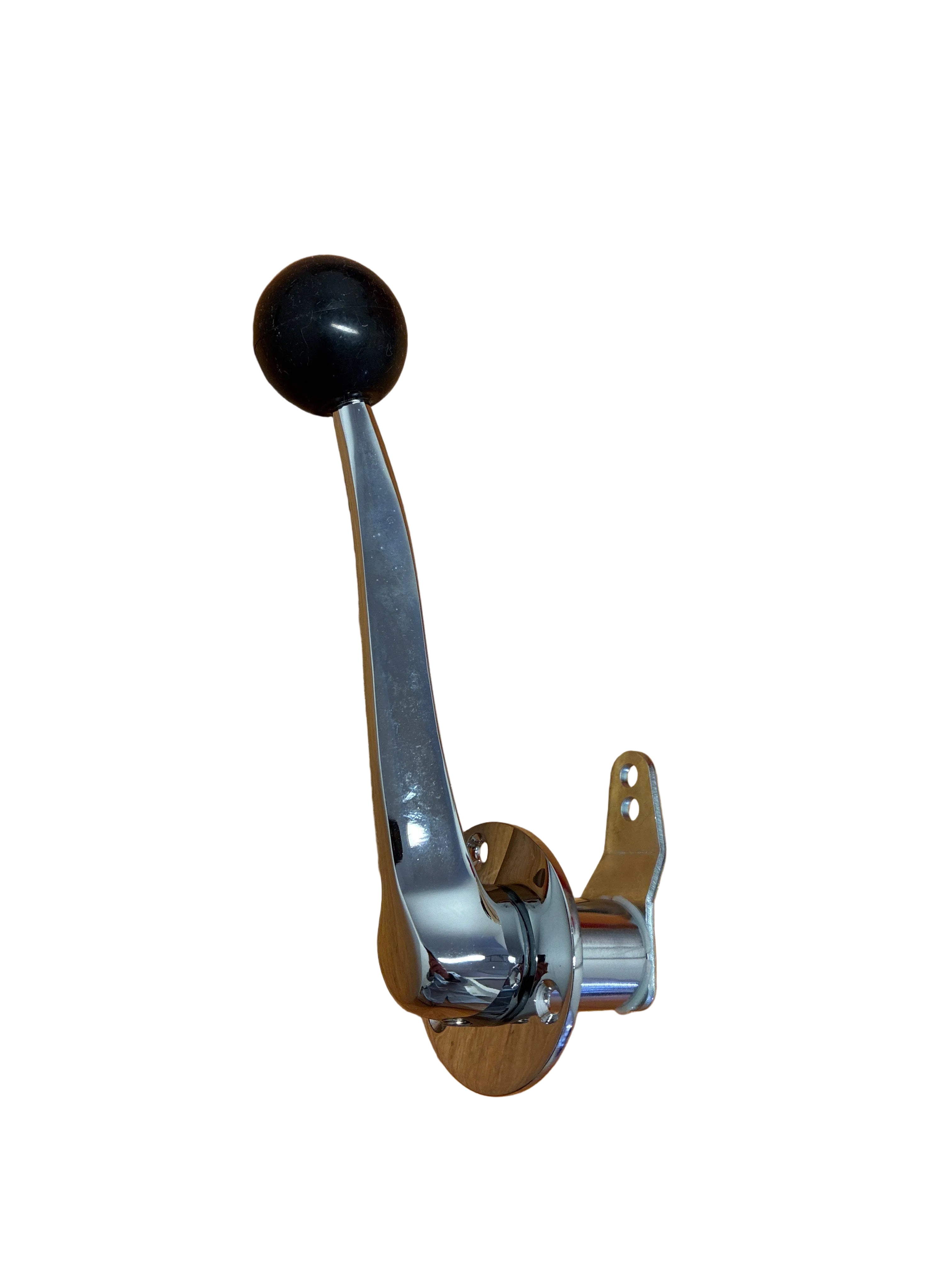

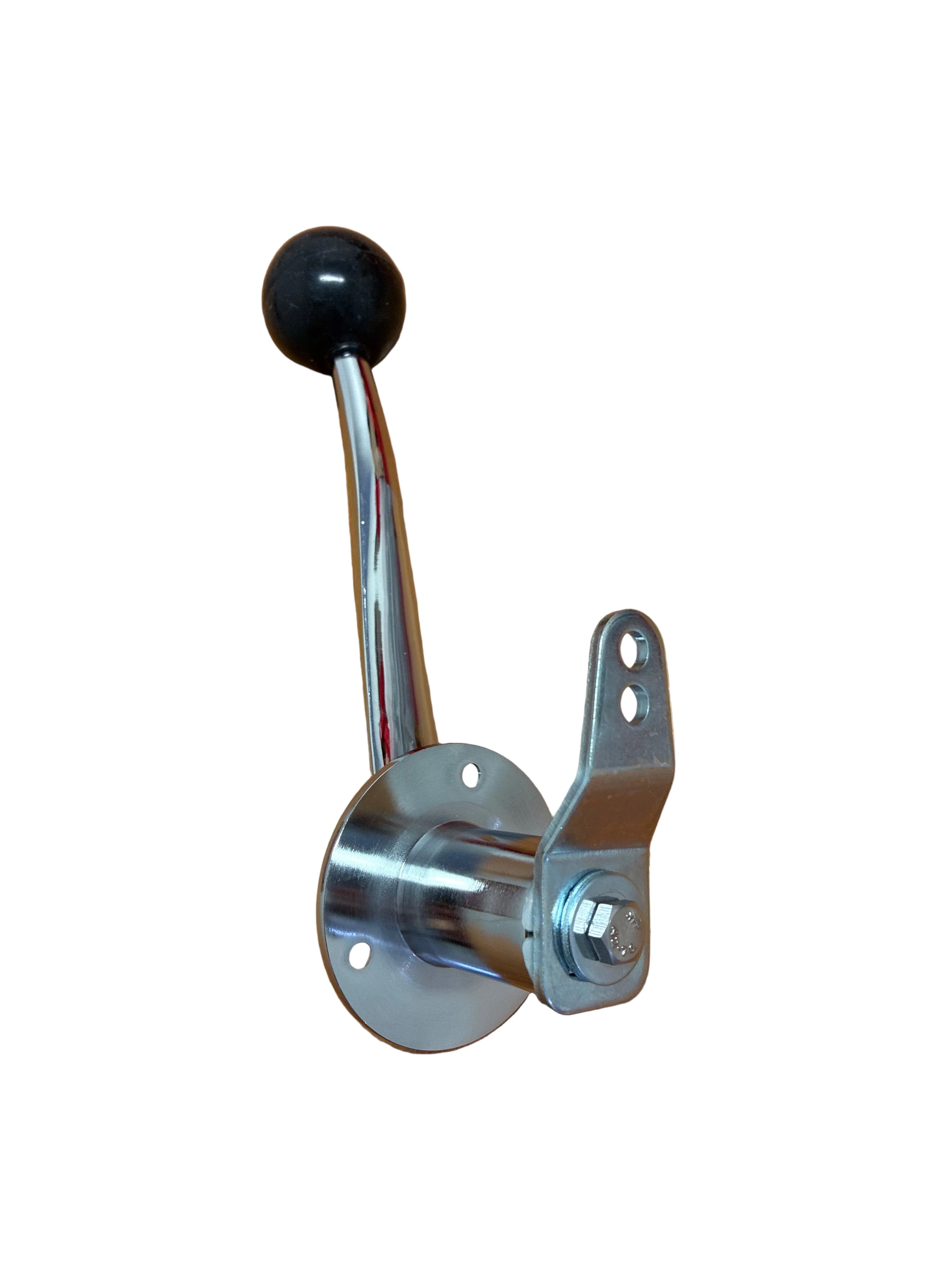

Marine Throttle Control – Single Lever Side Mount

The Marine Throttle Control – Single Lever Side Mount is a simple, rugged mechanical control designed for operating the throttle or gear shift on inboard engines, jet boats and other compatible marine engine installations.

Featuring a proven single-function, single-lever design, this control provides straightforward mechanical operation without unnecessary complexity. Its durable chrome-plated brass construction gives it a traditional marine appearance while providing the strength required for regular use aboard a boat.

Compatible with Morse 33C and 43C-type threaded-end control cables, this compact side-mount throttle control is an excellent option for new installations, replacement controls and restoration projects.

Available from Barton Marine NZ, supplying marine engine controls, control cables and boating equipment to customers throughout New Zealand.

Key Features

• Single-lever marine engine control
• Single-function operation for throttle or shift
• Side-mount installation
• Suitable for inboard engines and jet boats
• Compatible with Morse 33C-type control cables
• Compatible with Morse 43C-type control cables
• Uses threaded-end control cables
• Rugged, uncomplicated mechanical design
• Chrome-plated brass construction
• 196mm overall lever arm length
• Requires approximately 50mm mounting depth
• Suitable for replacement and new installations
• Absolute part number 60052

Simple Single-Lever Marine Engine Control

The Absolute 60052 is designed as a single-function marine control.

This means one control operates one function – typically the engine throttle or gear shift – rather than combining both throttle and shift into a dual-function lever.

Its uncomplicated mechanical design makes it particularly suitable for traditional marine engine installations where a simple and dependable control is required.

Ideal for Inboard Engines & Jet Boats

This single-lever control is commonly used for throttle or shift operation on inboard-powered boats and jet boats.

Applications can include:

• Sailing yachts
• Cruising yachts
• Launches
• Inboard-powered boats
• Jet boats
• Classic boats
• Displacement vessels
• Marine diesel installations
• Boat restoration projects
• Replacement mechanical controls

Always confirm compatibility with your engine, gearbox and existing control system before installation.

Compatible with Morse 33C & 43C-Type Cables

A major advantage of this control is its compatibility with commonly used Morse 33C and 43C-type threaded-end marine control cables.

These mechanical push-pull cables transfer movement from the control lever to the engine throttle or gearbox.

Barton Marine NZ stocks a range of marine engine control cables, 33C cables, ball joints and associated engine control fittings, making it easier to source the components required for a complete installation.
