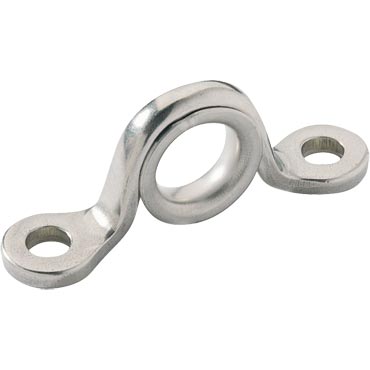

Ronstan RF1058 10mm Saddle with Eye – Stainless Rope & Wire Guide Fitting

The Ronstan RF1058 Saddle with Eye 10mm is a durable and compact marine-grade stainless steel wire and rope guide designed for use in a wide range of sailing and marine rigging applications. Featuring a 10mm internal clearance and a built-in lashing eye, this fitting is perfect for securing small to medium-diameter rope, wire, or hose, while offering the added utility of a tie-off point.

Made from 316 stainless steel, the RF1058 provides excellent corrosion resistance in saltwater environments, making it ideal for both above-deck and below-deck installations. Its low-profile, polished design ensures minimal line snagging and a clean aesthetic, while the two-hole mounting system allows for fast and secure installation on decks, masts, or transoms.

Specifications:

• Model: Ronstan RF1058

• Clearance (internal width): 10mm

• Material: 316 marine-grade stainless steel

• Finish: Polished

• Mounting holes: 2 x approx. 3.2mm – fasteners not included

• Base width: Approx. 15mm

• Overall length: Approx. 25mm

• Eye feature: Central lashing eye for bungee cords, clips, or securing lines

• Applications: Marine rope guide, wire retainer, hose or cable clamp, tie-off point

Key Features:

• 10mm internal clearance ideal for marine rope, wire, or tubing

• Integrated lashing eye for added functionality

• Marine-grade stainless steel for long-lasting corrosion resistance

• Low-profile, polished design for snag-free use on deck

• Perfect for yachts, dinghies, kayaks, and small boats

• Quick installation with two screws (not included)

Common Use Cases:
Widely used for bungee cord retention, lifeline support, electrical conduit management, and deck line organisation. A favourite among boatbuilders, rigging professionals, and DIY sailors for its compact form, versatility, and robust marine performance.
