Osculati Automatic Bilge Pump Float Switch – 6–32V DC

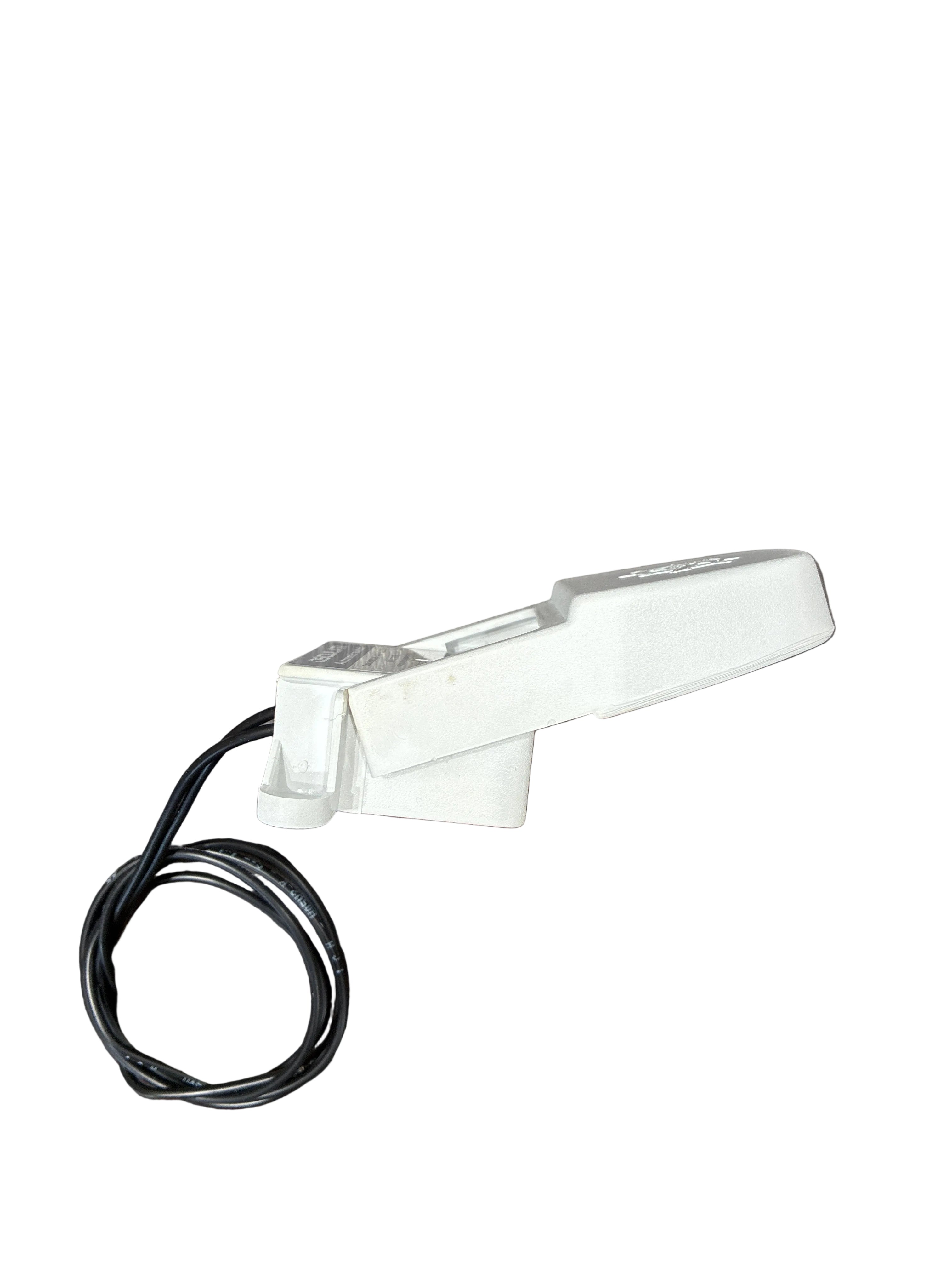

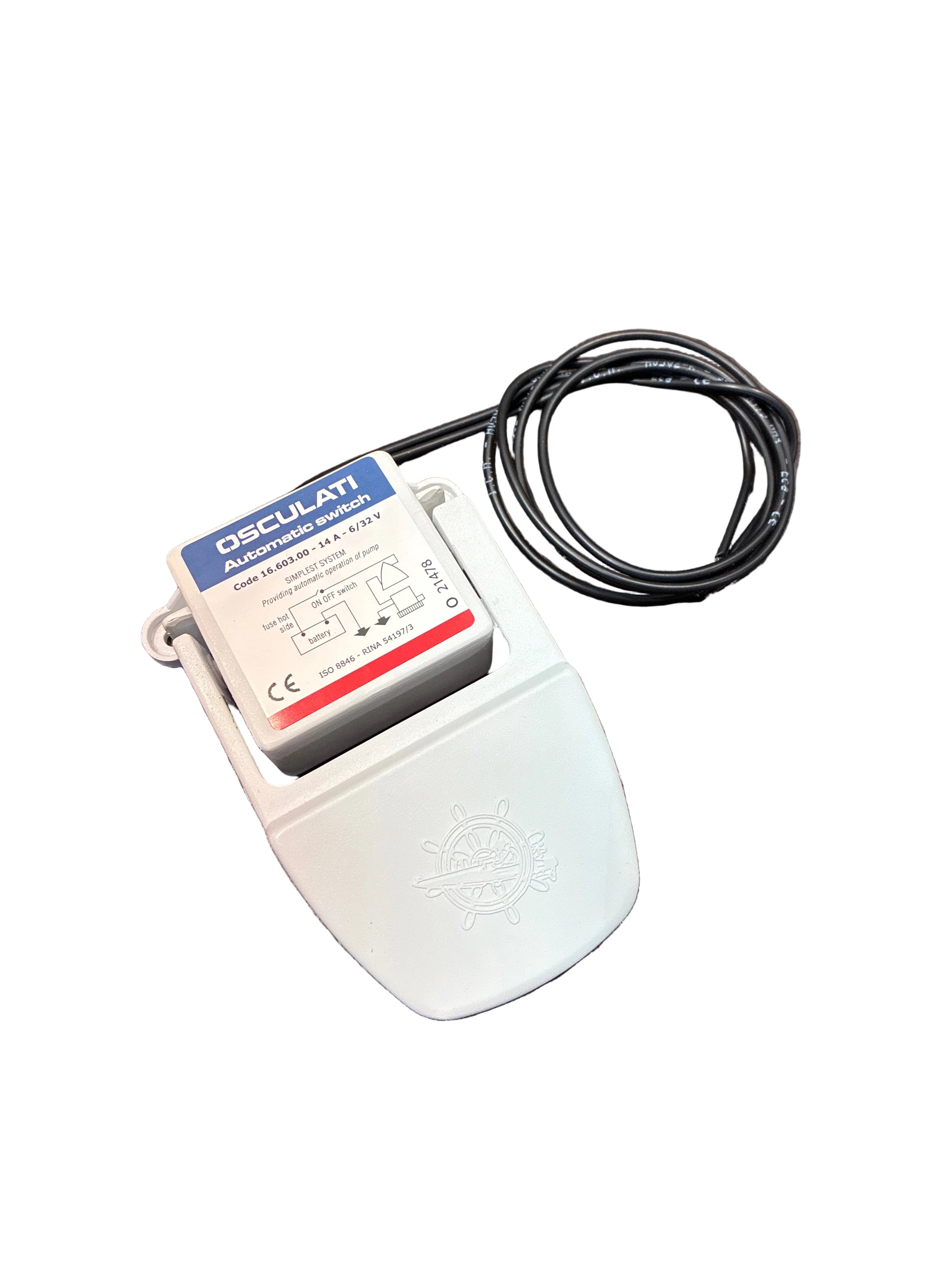

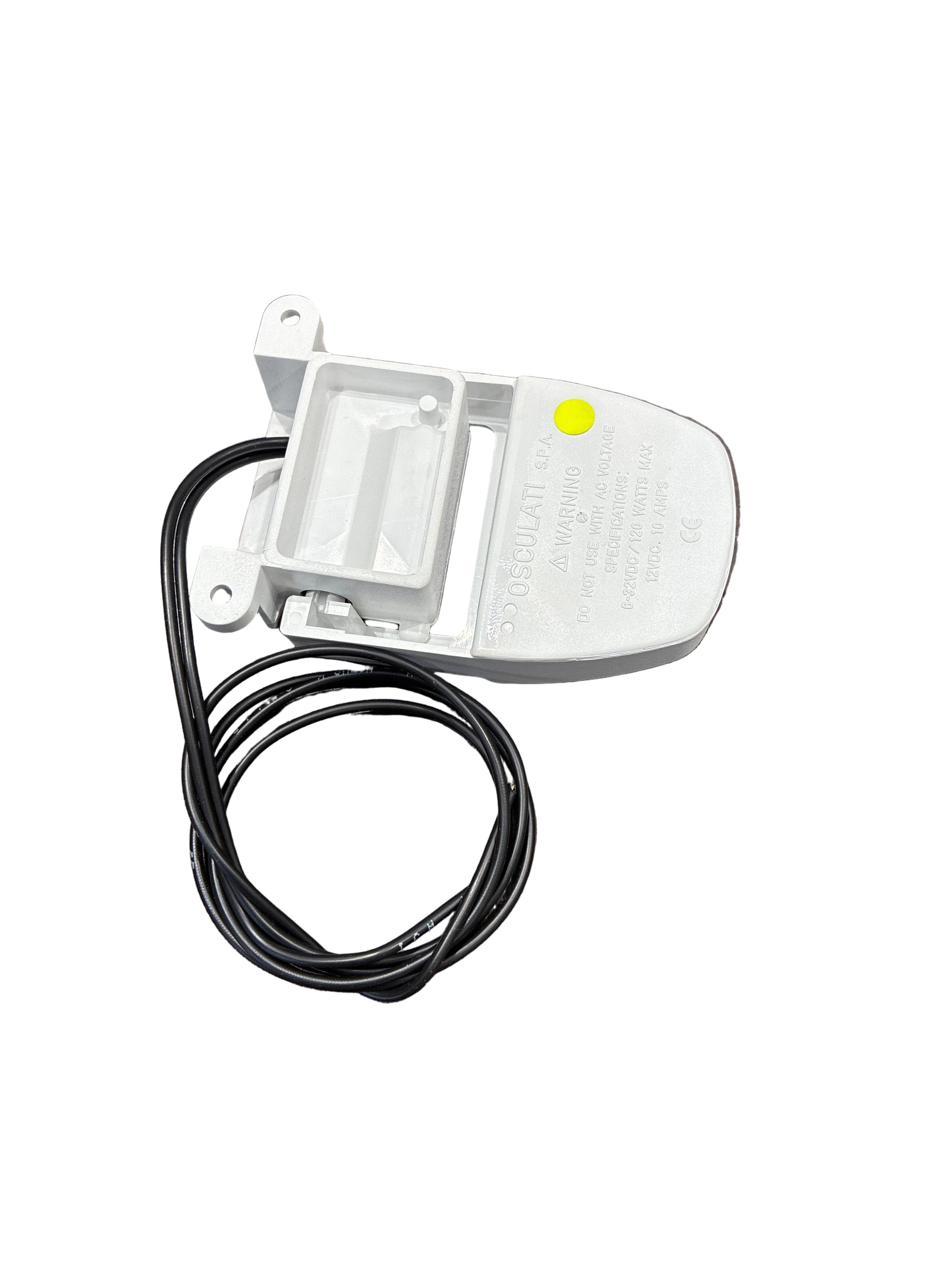

The Osculati Automatic Bilge Pump Float Switch is a compact, snap-switch type marine float switch designed to automatically control an electric bilge pump as water levels rise and fall.
Manufactured by Italian marine equipment brand Osculati, this automatic bilge pump switch provides a practical solution for converting a compatible manually switched electric bilge pump into an automatic bilge pumping system.
Featuring a 6–32V DC operating range, 120W maximum switching capacity and snap switch switching mechanism, the Osculati float switch is suitable for compatible 12V and 24V marine electrical systems, subject to the pump's electrical load.
Its compact design makes it suitable for installation in the bilge of many recreational boats, yachts, trailer boats and small commercial vessels.
Available from Barton Marine NZ, this automatic bilge pump float switch is a useful component for maintaining a reliable onboard bilge water management system.
Key Features
-
Genuine Osculati marine bilge pump float switch
-
Automatic water-level activated switching
-
Mechanical snap switch switching mechanism
-
6–32V DC operating range
-
120W maximum electrical load
-
Rated at 10A on a 12V DC system
-
Suitable for compatible 12V and 24V bilge pump installations
-
Compact 120 × 88mm footprint
-
Low-profile design when the float is lowered
-
Float rises and falls with the bilge water level
-
Helps automate compatible electric bilge pumps
-
Suitable for new installations and replacement applications
-
Practical for yachts, dinghies, trailer boats and recreational vessels
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Osculati |
| Product | Bilge Pump Automatic Float Switch |
| Switch Type | Mechanical Snap Switch |
| Operating Voltage | 6–32V DC |
| Maximum Switching Load | 120W |
| Current Rating at 12V | 10A maximum |
| Current Rating at 24V | 5A maximum based on 120W limit |
| Length | 120mm |
| Width | 88mm |
| Height – Float Lowered | 28mm |
| Height – Float Fully Raised | 75mm |
| Activation | Rising water level |
| Deactivation | Falling water level |
| Primary Application | Automatic electric bilge pump control |
| Suitable Systems | Compatible DC marine bilge pump systems |
Automatic Bilge Pump Operation
The Osculati automatic float switch operates by responding to changes in the water level inside the boat's bilge.
As water accumulates, the float rises.
When the float reaches its switching position, the internal mercury-operated mechanism closes the electrical circuit, allowing a correctly connected bilge pump to operate.
As the water level falls, the float lowers and the switch opens the circuit, stopping the pump.
This allows a compatible electric bilge pump to operate automatically without the operator needing to switch it on and off manually.
Suitable for 12V & 24V Marine Electrical Systems
The Osculati float switch is rated for operation between 6V and 32V DC.
This makes it suitable for many marine electrical systems, provided the connected load remains within the manufacturer's maximum rating.
12V Bilge Pump Systems
At 12V DC, the switch is rated for a maximum load of 120W, equivalent to 10A.
24V Bilge Pump Systems
At 24V DC, the same 120W limit corresponds to 5A.
Check the pump's actual electrical requirements, including start-up current, before connecting it directly to the float switch.
For pumps exceeding the permitted switching load, an appropriately specified relay arrangement may be required.
