Maxwell RC8-8 12V 1000W Windlass Maxwell RC8-8 12V 1000W Windlass
Maxwell RC8-8 12V 1000W Windlass

Maxwell

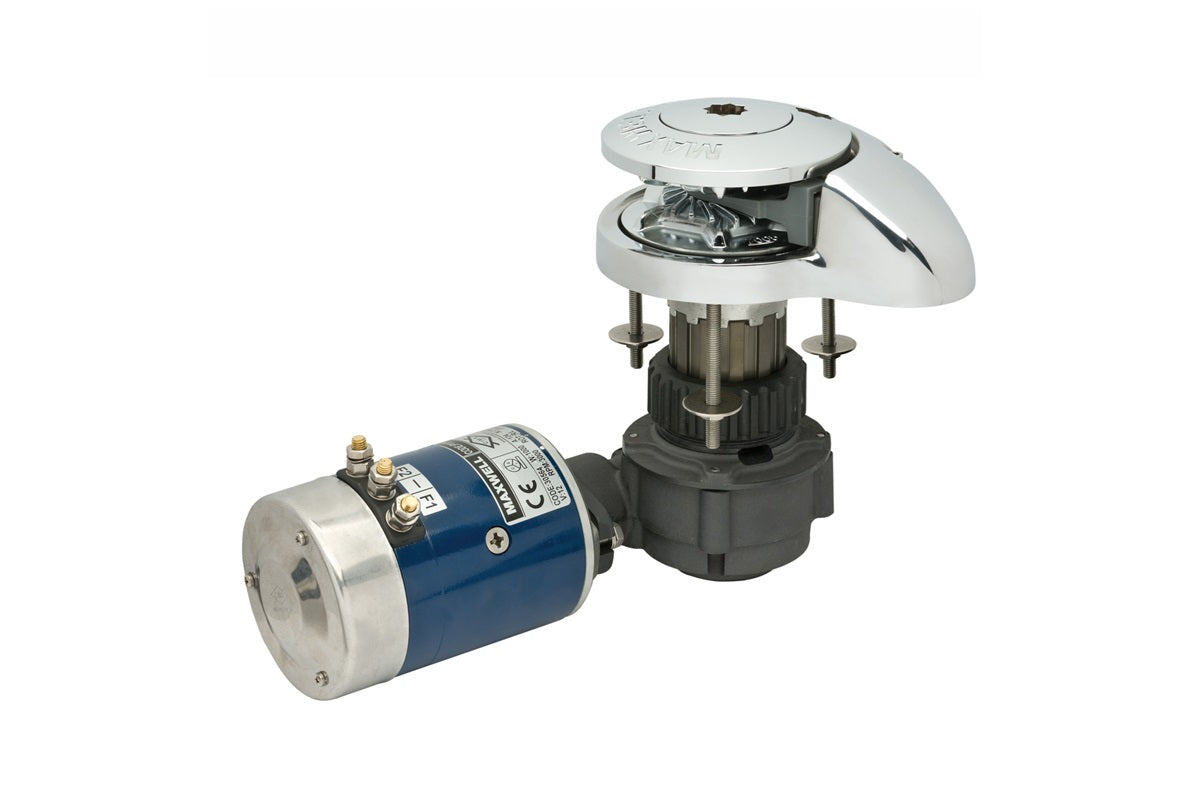

Maxwell RC8-8 Anchor Winch – 12V 1000W Rope/Chain Windlass

$2,549.00 $2,399.00 Save 6%
Tax included.

The Maxwell RC8‑8 Anchor Winch is a powerful, heavy-duty automatic rope/chain windlass designed for reliable anchoring on small to mid-size boats. Built with premium marine-grade materials and Maxwell’s proven engineering, the RC8-8 delivers strong pulling power, smooth rope-to-chain transition, and long-term durability in demanding marine environments.

Powered by a high-torque 1000W motor, the RC8-8 provides dependable anchor deployment and retrieval while maintaining a compact, low-profile footprint. It is designed for use with 8 mm chain and 14-16 mm rope, ensuring smooth and efficient handling of modern anchor rodes.

Featuring Maxwell’s patented Wave Design™ chainwheel, this windlass delivers superior grip, reduced rope wear, and reliable performance with rope/chain combinations or all-chain setups.

Key Features

  • Powerful 12V 1000W motor for strong anchor retrieval

  • Includes switching gear: Reversing Heavy Duty Solenoid - Up/Down Panel Control Switch - 135 Amp Circuit Breaker/Isolator

  • Fully automatic rope/chain windlass operation

  • Designed for 8 mm chain and 14–16 mm rope

  • Patented Wave Design™ chainwheel for smooth, reliable handling

  • Compact low-profile vertical design saves deck space

  • Durable marine-grade stainless steel construction

  • Manual override and emergency free-fall capability

  • Sealed oil-bath gearbox for long service life

  • Works with rope/chain or all-chain anchor systems

Technical Specifications

  • Model: Maxwell RC8-8

  • Motor Power: 1000W

  • Voltage: 12V DC (24V options available)

  • Maximum Pull: Approx. 600 kg

  • Static Hold: Approx. 1200 kg

  • Recommended Chain: 8 mm short link

  • Recommended Rope: 14–16 mm nylon

  • Chain Speed: Approx. 32 m/min

  • Weight: Approx. 16.5 kg

  • Includes switching gear: Reversing Heavy Duty Solenoid - Up/Down Panel Control Switch - 135 Amp Circuit Breaker/Isolator

Ideal For

  • Boats approx. 7–13 m in length

  • Coastal and offshore cruising vessels

  • Trailer boats and launches

  • Fishing and recreational boats

  • Upgrading from manual anchoring systems
