Marinco ConnectPro 2-Pin Plug & Receptacle – 40A Marine Connector

The Marinco ConnectPro 2-Pin Plug and Receptacle is a heavy-duty marine electrical connection system designed for trolling motors, downriggers and other high-current DC equipment aboard boats.

Rated to a maximum of 40 amps, the ConnectPro system provides a secure removable electrical connection for 12V, 24V and 36V 2-wire systems. Its locking plug and receptacle design helps maintain reliable electrical contact even in demanding marine environments where vibration, moisture and corrosion can cause problems with conventional electrical connectors.

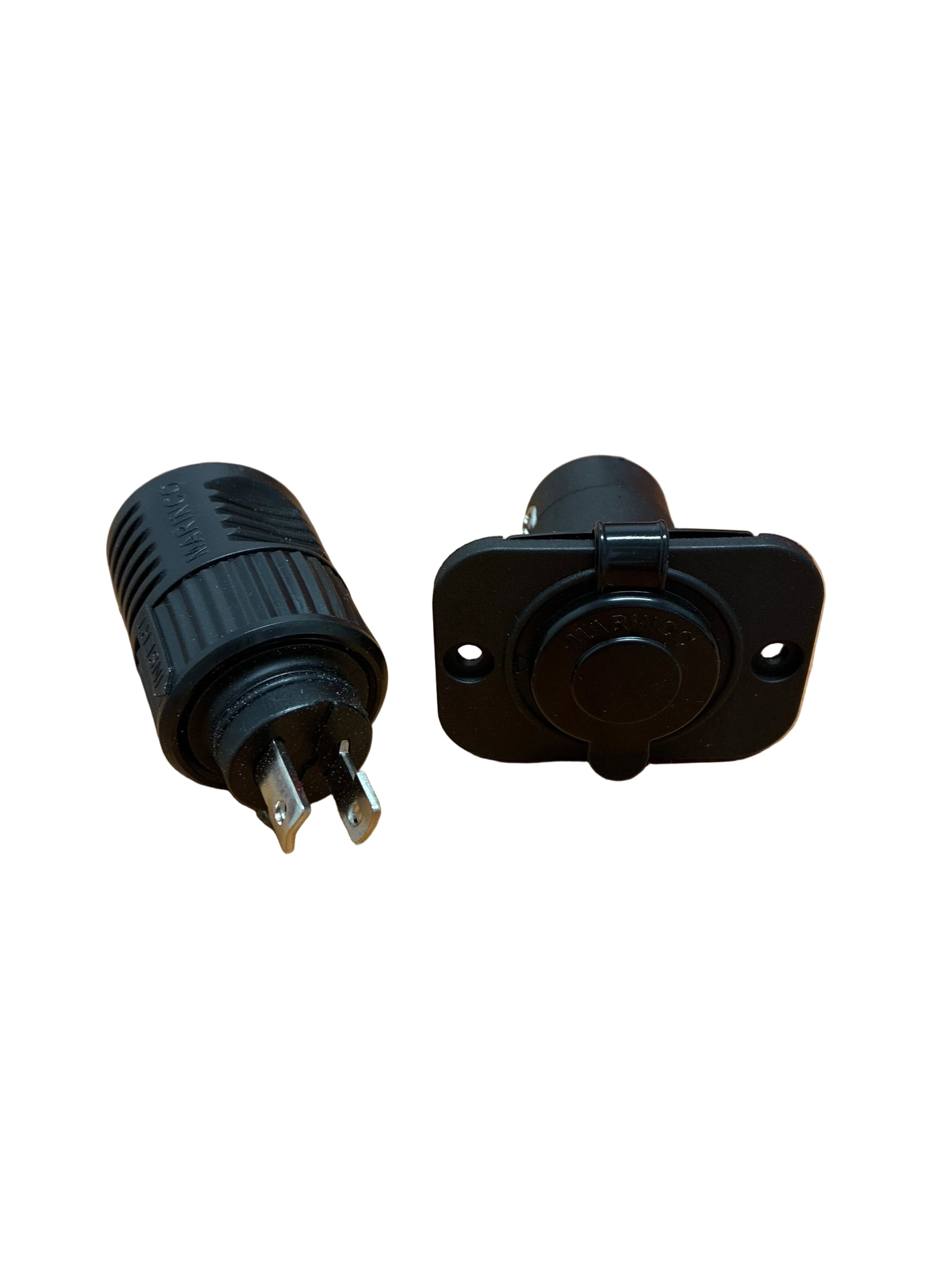

The complete Marinco 12VCPS2 ConnectPro kit includes both the 2-wire plug and matching receptacle, making it an excellent choice for New Zealand boat owners installing a trolling motor, electric downrigger or other compatible high-current marine equipment.

Key Features

• Complete Marinco ConnectPro plug and receptacle kit

• Heavy-duty 2-pin / 2-wire marine electrical connection

• Maximum rating: 40 amps

• Suitable for 12V, 24V and 36V 2-wire systems

• Ideal for trolling motors

• Excellent for electric downriggers

• Suitable for other compatible high-current DC equipment

• Secure locking plug and receptacle

• Spring-clamping electrical connection

• O-ring sealed plug connection

• Weather-resistant plug cover

• Weather-resistant receptacle sealing cap

• Corrosion-resistant plated brass electrical components

• Drain holes help keep water away from receptacle electrical components

• Perma-Lock screw terminals resist loosening from hull vibration

• Ergonomic plug grip

• Ground-blade alignment design

• Suitable for demanding marine installations

• Plug and receptacle supplied together

Specifications

Brand: Marinco
Series: ConnectPro
Product: ConnectPro 2-Wire Plug & Receptacle
Part Number: 12VCPS2
Product Type: Heavy-Duty Marine DC Plug & Receptacle
Connection: 2-Wire / 2-Pin
Maximum Current Rating: 40A
System Voltage: 12V, 24V or 36V DC 2-wire systems
Plug Part Number: 12VBPS2
Receptacle Part Number: 12VBRS2
Receptacle Installation: Front-mount panel installation
Receptacle Mounting Hole: Standard 1-1/8" diameter
Plug Cable Capacity: 16 to 8 AWG
Receptacle Cable Capacity: Up to 10 AWG
Electrical Components: Corrosion-resistant plated brass
Primary Applications: Trolling motors, downriggers and compatible high-current DC marine equipment

Designed for Trolling Motors

The Marinco ConnectPro system is particularly well suited to electric trolling motor installations.

Trolling motors can draw substantial current, making the quality of the electrical connection between the motor and battery system particularly important.

Poor electrical connections can create excessive resistance, voltage drop and heat, potentially reducing the power available to the trolling motor.

The ConnectPro system is designed to provide excellent electrical current-carrying capacity through a secure plug and receptacle connection.

For boat owners who regularly remove their trolling motor, it also provides a convenient disconnect point without permanently hard-wiring the motor to the vessel.

40 Amp Marine Electrical Connection

The Marinco ConnectPro plug has a maximum rating of 40 amps, making it suitable for compatible higher-current marine equipment.

This makes the system particularly useful for equipment such as:

• Electric trolling motors

• Electric downriggers

• Compatible fishing equipment

• High-power marine accessories

• Other suitable DC equipment within the system's electrical rating

Always confirm the maximum current requirements of the connected equipment before installation.

12V, 24V & 36V Compatible

One of the major advantages of the ConnectPro system is its ability to work with 12V, 24V or 36V 2-wire DC systems.

This makes it suitable for a broad range of electric trolling motor installations, from smaller 12V motors through to compatible higher-voltage systems.

The voltage of the electrical system does not change the need to correctly size the cable, circuit protection and associated electrical components for the current being carried.

Secure Locking Connection

Marine electrical connectors are exposed to continuous vibration and movement.

The ConnectPro system uses a locking plug and receptacle arrangement designed to maintain a secure physical and electrical connection.

Its spring-clamping connection helps maintain positive electrical contact, reducing the likelihood of a poor connection caused by vibration.

This is particularly valuable aboard trailer boats and fishing boats operating in rough water.

Waterproof Plug Connection

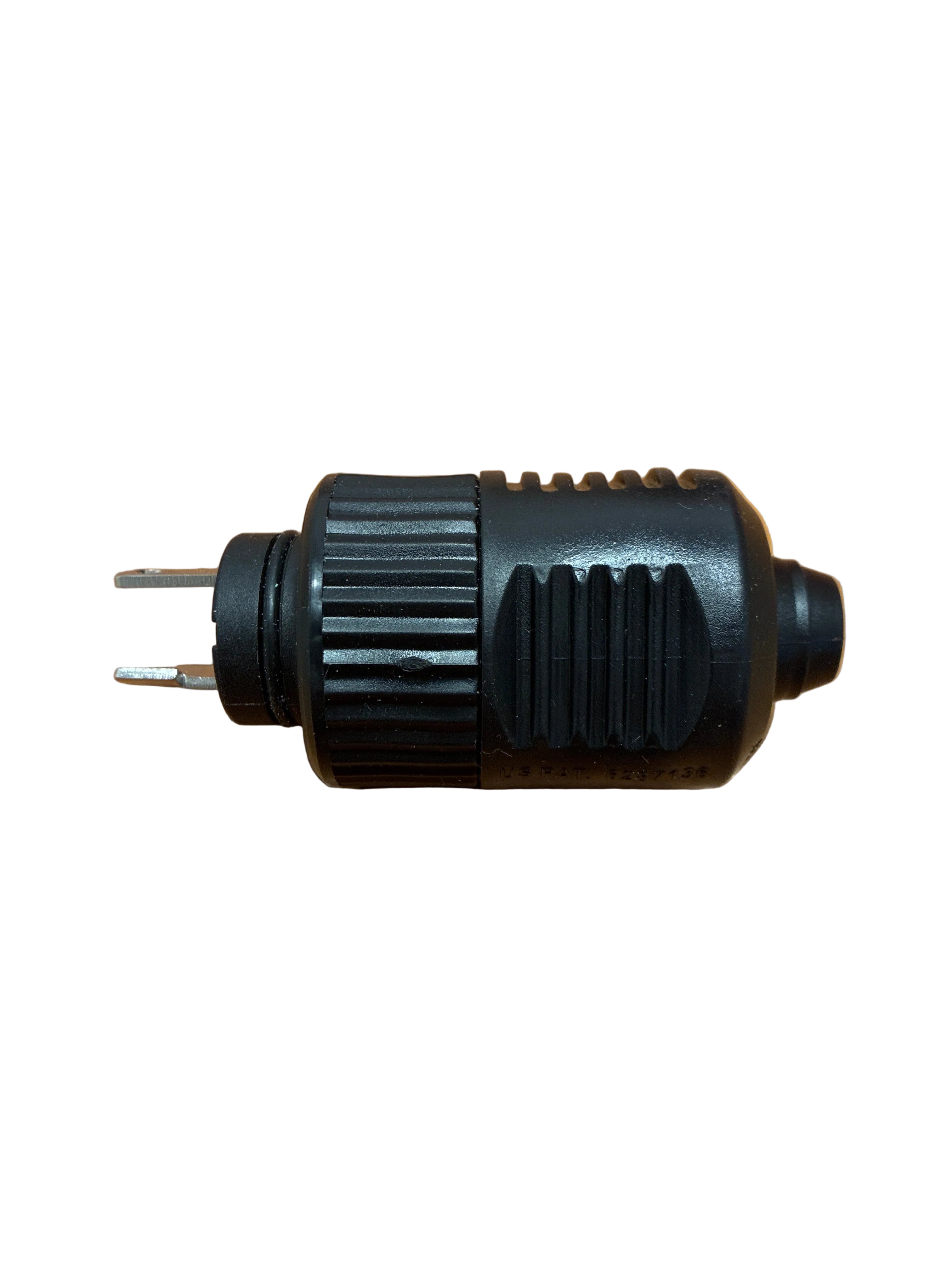

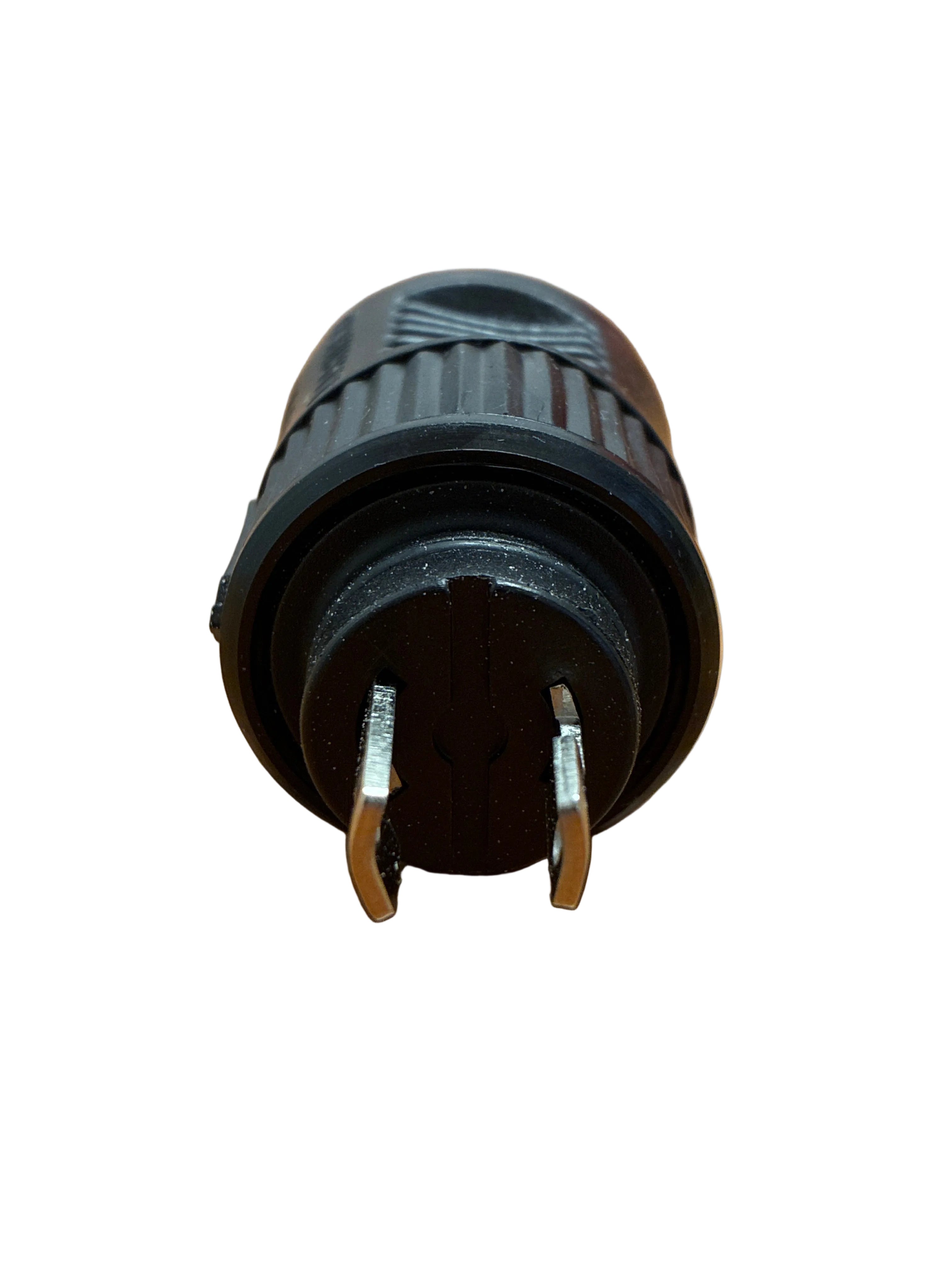

The ConnectPro plug incorporates an O-ring seal designed to provide a waterproof connection when correctly connected to the matching receptacle.

The plug also features a weather-resistant cover.

These features help protect the electrical connection from the demanding conditions encountered aboard boats.

Weather-Resistant Receptacle

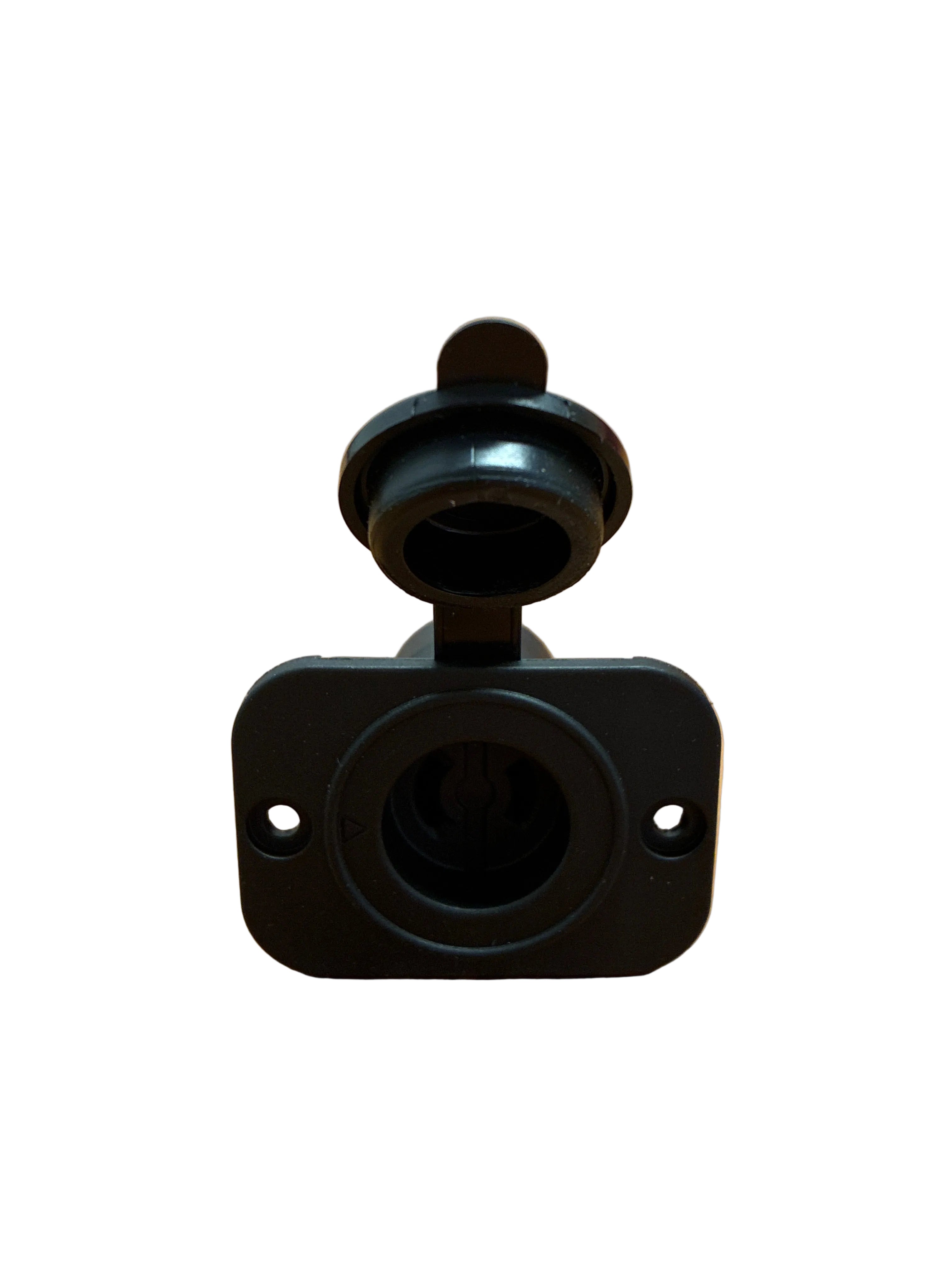

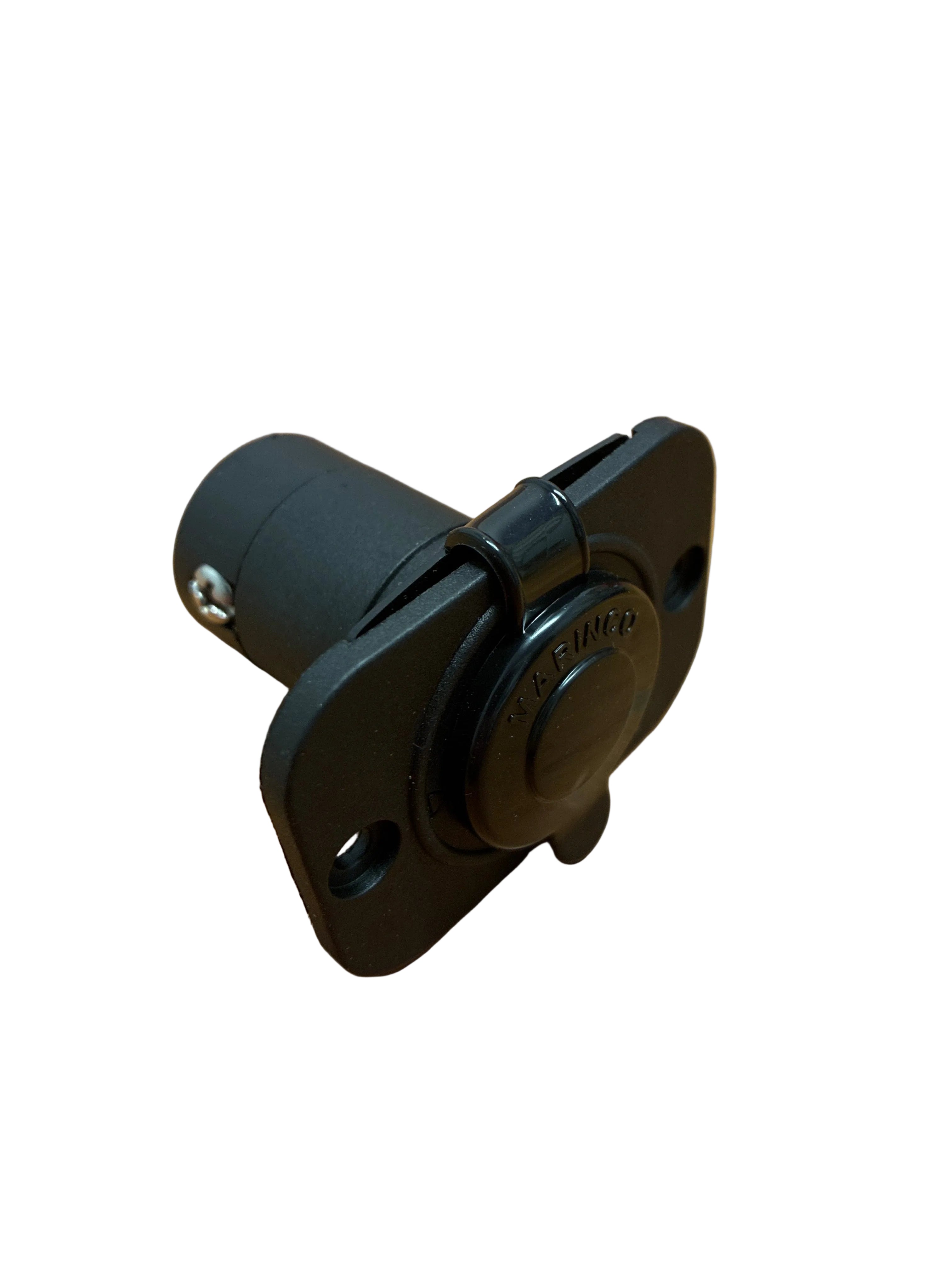

The matching ConnectPro receptacle includes a weather-resistant sealing cap to protect the socket when the equipment is disconnected.

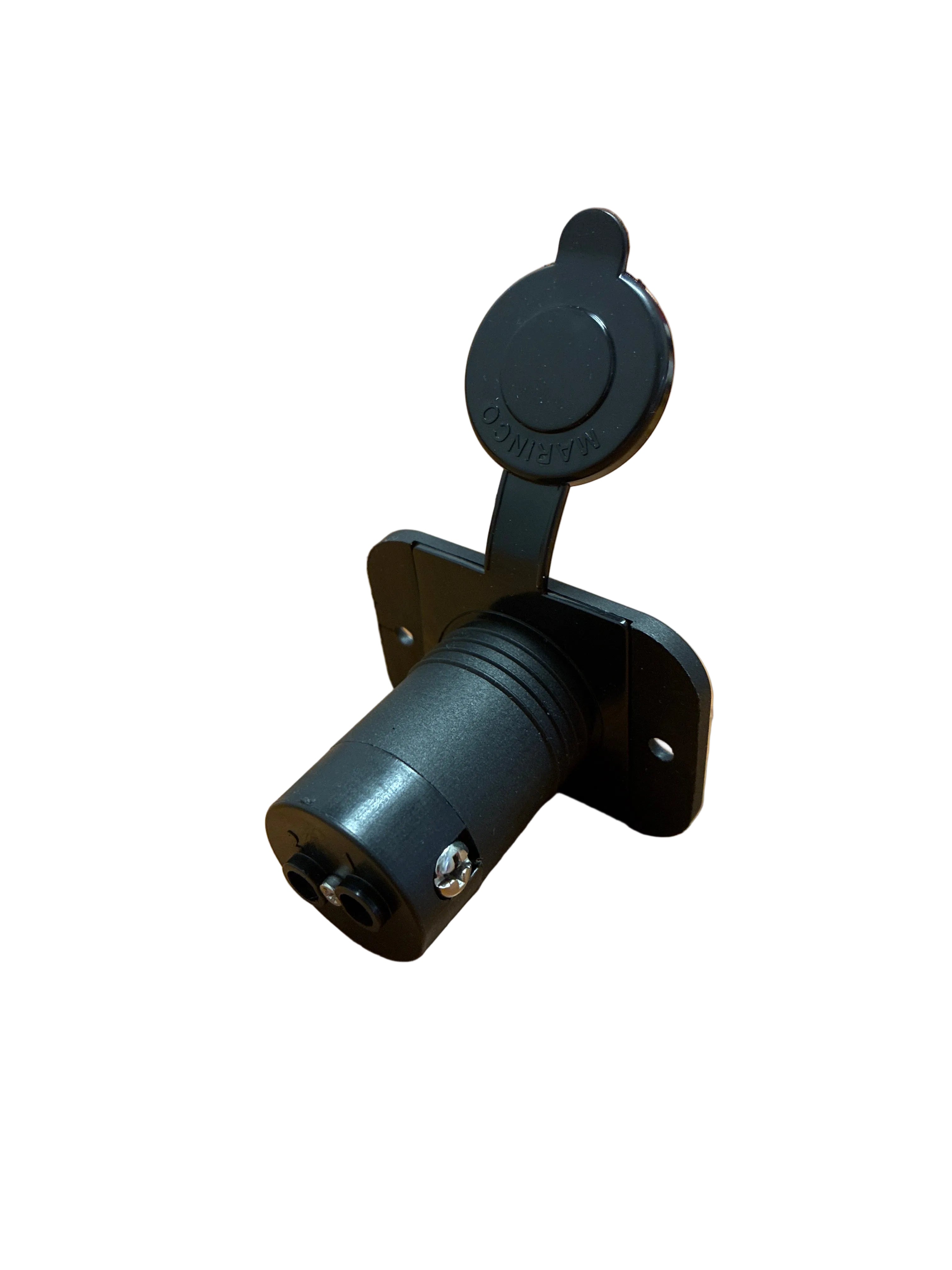

Drain holes in the receptacle are designed to help keep water away from the internal electrical components.

This makes the system particularly suitable for installations in exposed areas of fishing boats where spray and moisture are common.
