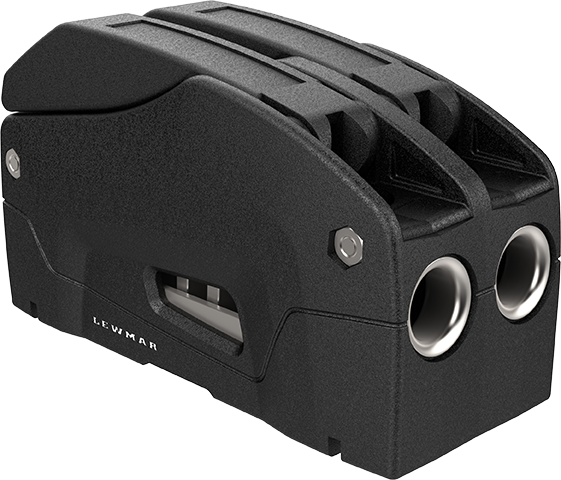

Lewmar DC1 Double Rope Clutch | Dual Halyard & Control Line Clutch
The Lewmar DC1 Double Rope Clutch is a compact, high-performance dual rope clutch designed to securely control two halyards, reefing lines, or sail control lines from a single deck-mounted unit. Ideal for modern cruising yachts, trailer yachts, and performance sailboats, the DC1 Double provides reliable line holding while freeing your winch for additional trimming and sail handling tasks.
Featuring two independently operated clutches, the DC1 Double allows each rope to be locked or released separately, giving sailors precise control without increasing cockpit clutter. Its precision-engineered jaw mechanism grips loaded lines securely while minimising rope wear and allowing smooth, controlled release when adjustments are required.
Manufactured from durable marine-grade materials with a low-profile design, the Lewmar DC1 Double is built to withstand harsh offshore conditions while integrating neatly with modern deck layouts. It is available in three rope size options to suit a wide range of yachts:
- 6–8mm rope
- 8–10mm rope
- 10–12mm rope
Each version has a 500kg Working Load Limit (WLL), making it suitable for halyards, reefing systems and sail control applications on cruising and performance yachts.
Key Features
- Genuine Lewmar DC1 Double Rope Clutch
- Dual independent rope clutches
- Compact, space-saving design
- Precision jaw mechanism
- Secure holding under load
- Smooth, controlled rope release
- Minimises rope wear
- Marine-grade corrosion-resistant construction
- Ergonomic operating handles
- Available for 6–8mm, 8–10mm and 10–12mm rope
- 500kg Working Load Limit
- Genuine Lewmar quality
Why Buy from Barton Marine NZ?
At Barton Marine NZ, we supply genuine Lewmar sailing hardware trusted by New Zealand yacht owners for coastal cruising, offshore passages and club racing.
The Lewmar DC1 Double Rope Clutch provides efficient management of two control lines in one compact unit, helping reduce cockpit clutter while improving sail handling and making better use of your winches.
Ideal for:
- Cruising yachts
- Offshore yachts
- Trailer yachts
- Performance yachts
- Racing yachts
- Halyard management
- Reefing systems
- Coachroof winch layouts
- Mast-base control systems
- Yacht refits and new builds
Technical Specifications
| Feature | Specification |
|---|---|
| Brand | Lewmar |
| Product | DC1 Double Rope Clutch |
| Configuration | Double |
| Rope Size Options | 6–8mm, 8–10mm or 10–12mm |
| Working Load Limit (WLL) | 300-500kg |
| Minimum Holding Load | 300kg (6–8mm), 400kg (8–10mm), 500kg (10–12mm) |
| Approximate Weight | 650g |
| Length | 126mm |
| Width | 57.85mm |
| Height | 72mm |
| Fasteners | M6 pan head bolts |
| Maximum Fastener Torque | 10Nm |
| Recommended Line Entry/Exit Angle | Maximum 15° from clutch centreline |
These specifications are published in Lewmar's current DC1 Rope Clutch technical documentation.
Common Applications
The Lewmar DC1 Double Rope Clutch is ideal for:
- Main halyards
- Headsail halyards
- Spinnaker halyards
- Reefing lines
- Cunningham controls
- Outhaul controls
- Boom vang controls
- Traveller controls
- Mast-base line management
- Coachroof winch systems
Performance Benefits
The Lewmar DC1 Double delivers:
- Independent control of two loaded lines
- Secure holding with smooth release
- Reduced rope wear
- Better utilisation of onboard winches
- Cleaner, more organised cockpit layouts
- Compact installation requiring less deck space
- Reliable long-term marine performance
- Proven Lewmar engineering for cruising and racing yachts
