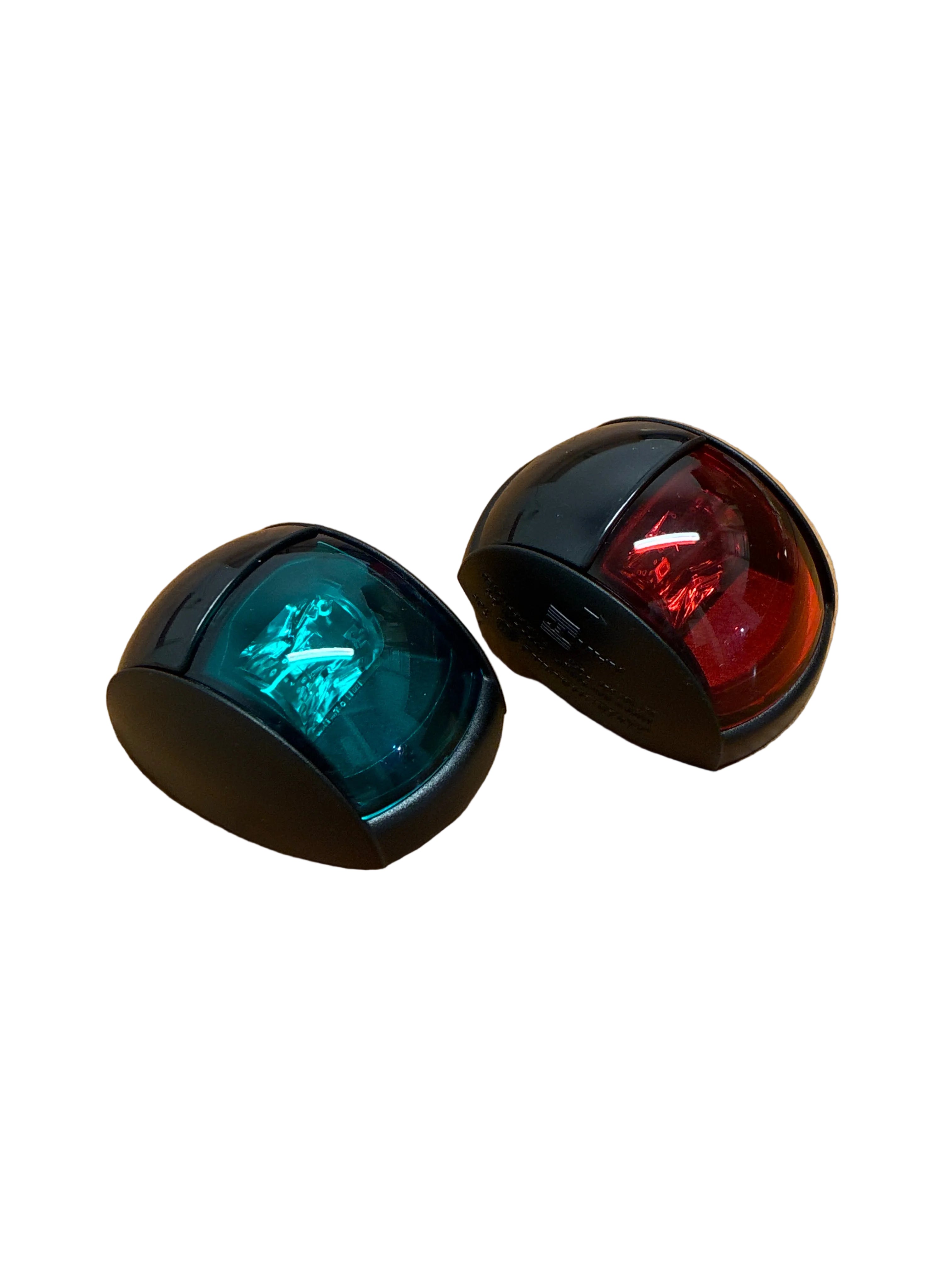

Hella NaviLED 2NM Port & Starboard Navigation Light Pair

The Hella Marine NaviLED 2NM Port & Starboard Navigation Light Pair provides a compact, energy-efficient LED sidelight solution for yachts, launches, powerboats and other recreational or commercial vessels.

Supplied as a matched pair with a red port light and green starboard light, these Hella NaviLED Compact navigation lights provide 2 nautical mile visibility while consuming less than 2 watts combined.

Designed and made in New Zealand by Hella Marine, the NaviLED Compact range combines precision LED optics, Multivolt 12/24V compatibility and fully sealed IP67 construction for reliable performance in demanding marine environments.

For New Zealand boaties upgrading older incandescent navigation lights or completing a new boat installation, this port and starboard pair offers an excellent combination of low power consumption, durability and proven marine performance.

Key Features

• Matched LED port and starboard navigation light pair
• Red port navigation light
• Green starboard navigation light
• 2 nautical mile minimum visible distance
• Suitable for yachts and powerboats
• Compact deck-mount design
• Multivolt 12V / 24V DC
• Less than 2W combined power consumption
• IP67 completely sealed construction
• Long-life LED technology
• No conventional bulbs to replace
• UV-resistant marine-grade housing
• Impact and UV-resistant lens
• Supplied with tinned marine cable
• Protection against voltage spikes
• Reverse-polarity protection
• High resistance to shock and vibration
• Maritime NZ approved
• International navigation-light approvals
• Made in New Zealand
• Hella Marine 5-year manufacturer's warranty

Specifications

Brand: Hella Marine
Series: NaviLED Compact
Product Type: LED Port & Starboard Navigation Light Pair
Port Light Colour: Red
Starboard Light Colour: Green
Minimum Visible Distance: 2 Nautical Miles
Operating Voltage: Multivolt 12/24V DC
Power Consumption: Less than 2W combined
Protection Rating: IP67 – Completely Sealed
Lens Material: UV-resistant, enhanced impact-resistant acrylic
Housing: UV-resistant ASA polymer

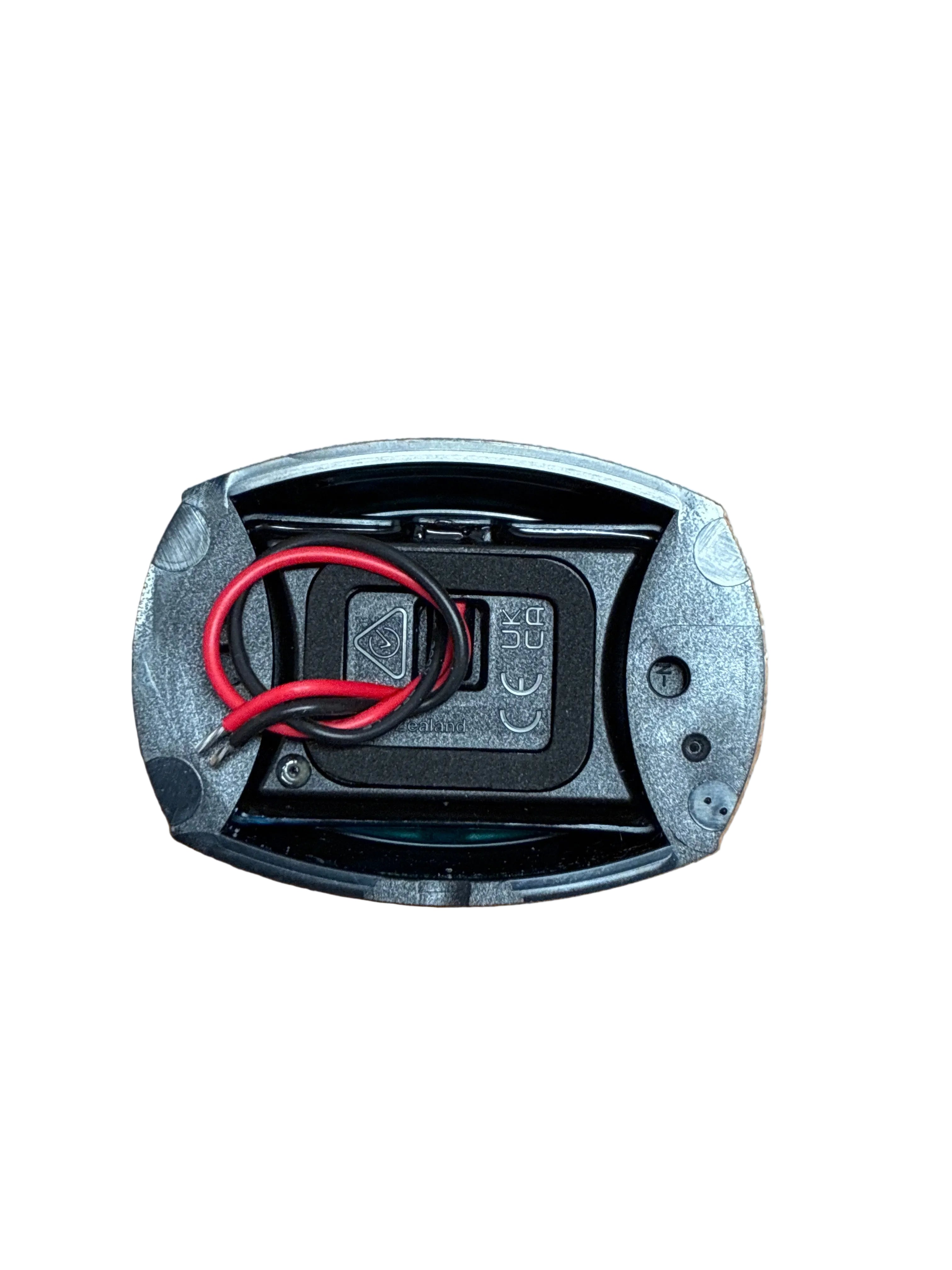

Cable: 500mm tinned marine cable
Weight: Approximately 75g including cable
Approvals: IMO COLREG 72, USCG, ABYC A-16, RINA, Maritime NZ, CE and UKCA
Country of Manufacture: New Zealand
Warranty: 5 Years

Port & Starboard Navigation Lights in One Pair

This Hella NaviLED package provides both sidelights required for a conventional marine navigation-light installation.

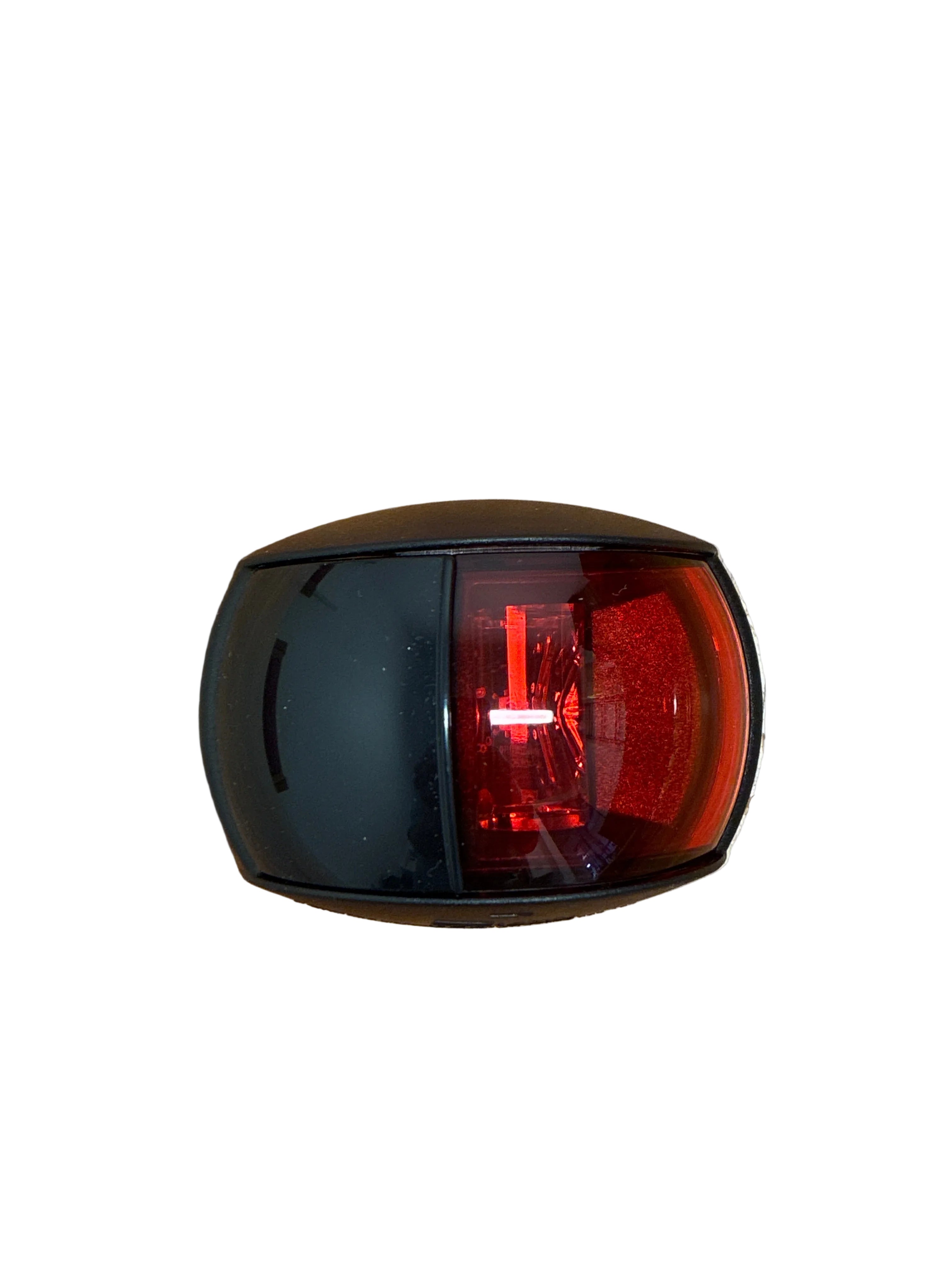

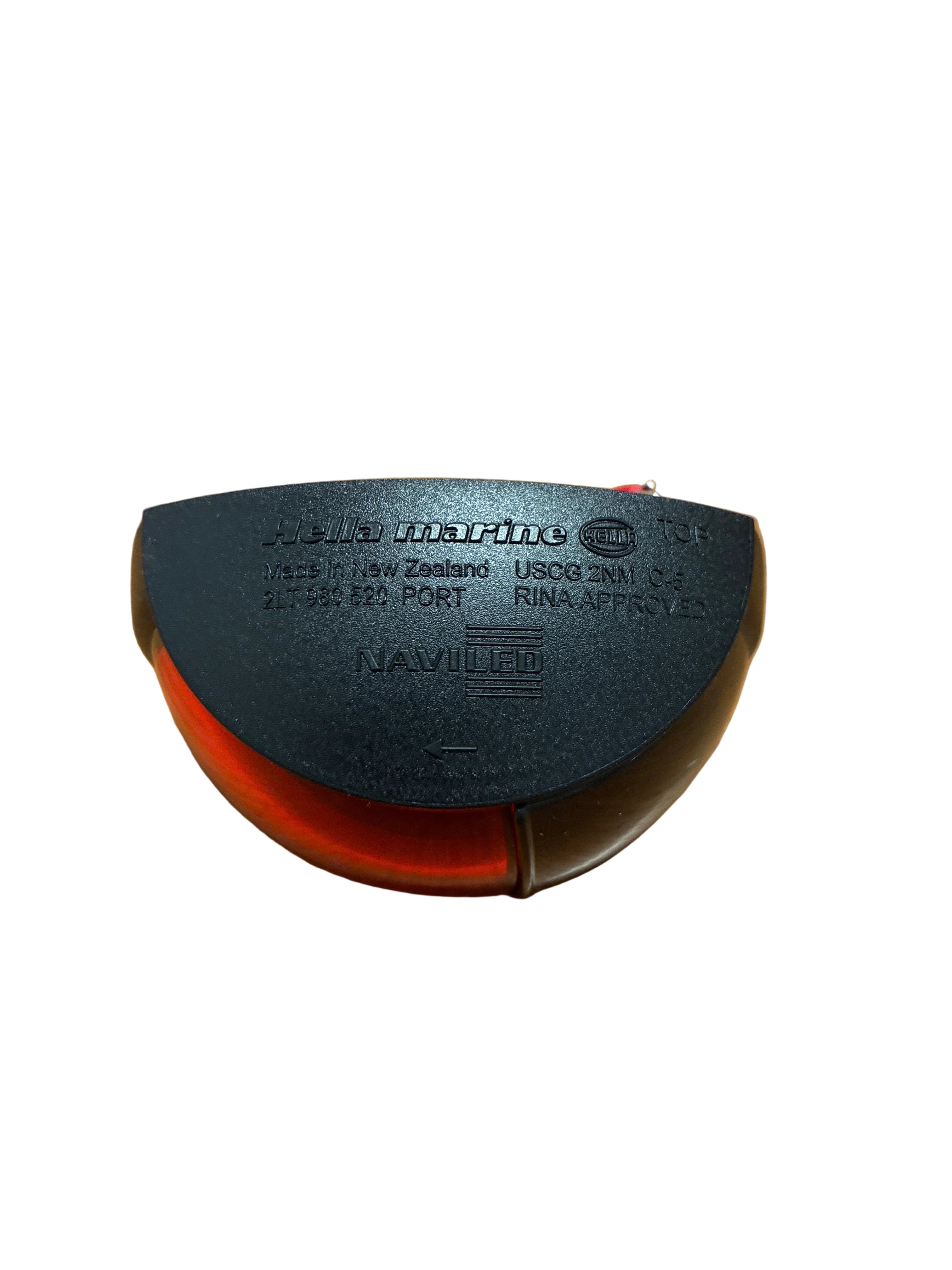

Red Port Light

The red navigation light is installed on the port, or left-hand, side of the vessel when looking forward.

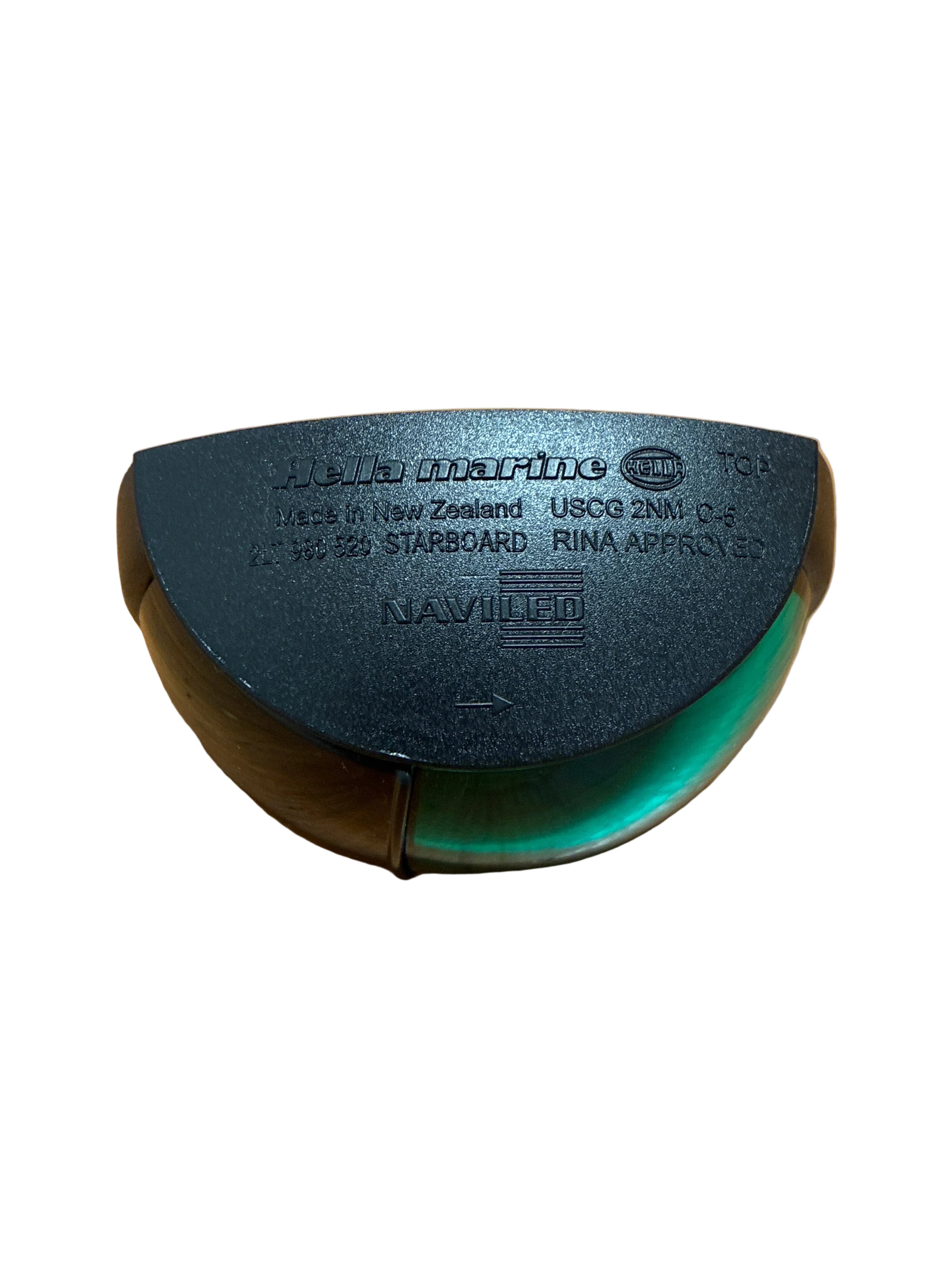

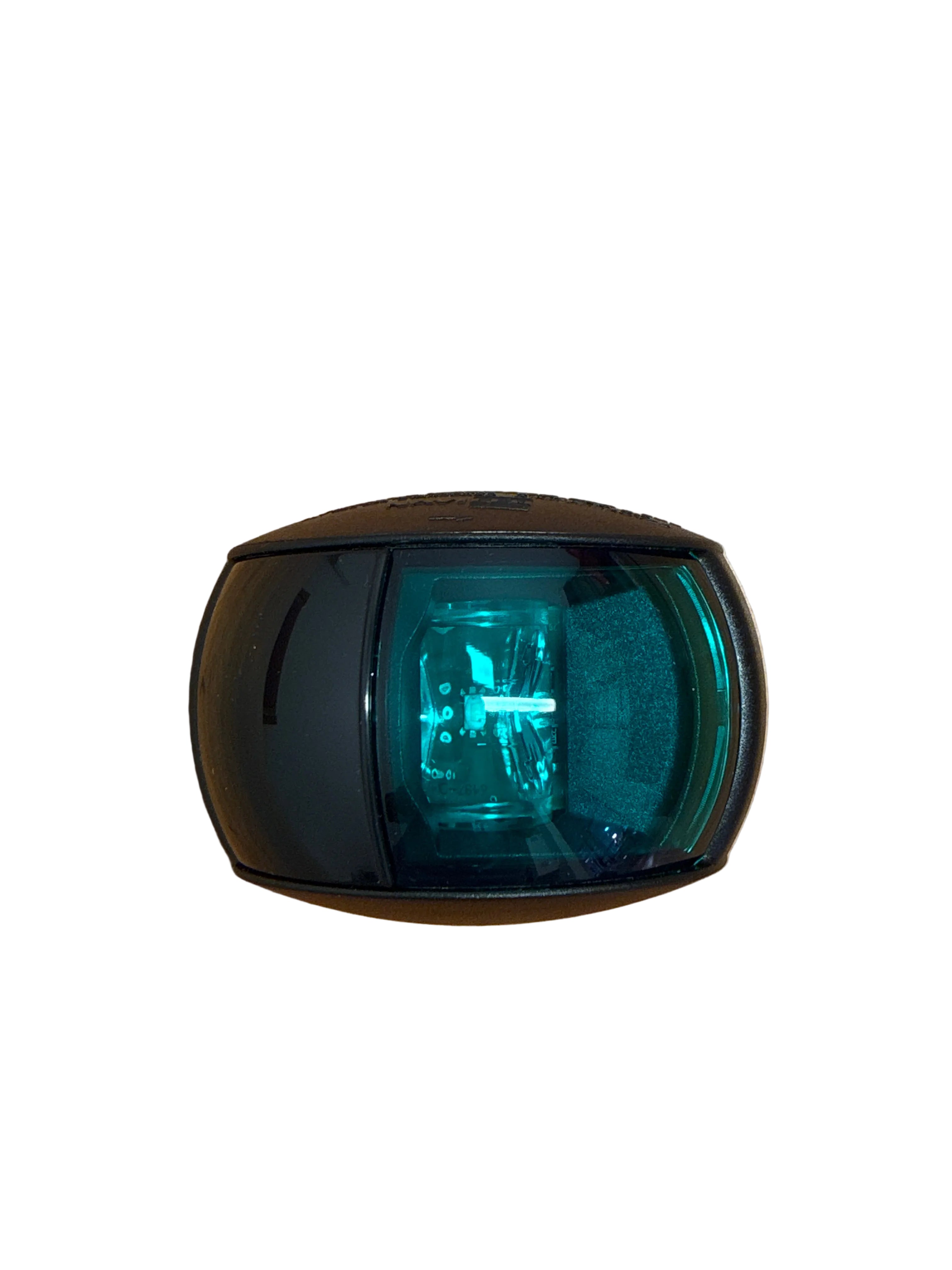

Green Starboard Light

The green navigation light is installed on the starboard, or right-hand, side of the vessel when looking forward.

When correctly positioned, the two lights allow other vessels to determine your boat's orientation and direction of travel at night or during periods of restricted visibility.

Buying the two lights as a matched pair also makes this an excellent choice when replacing an existing port and starboard navigation-light system.

2 Nautical Mile Visibility

Both lights provide a minimum visible distance of 2 nautical miles.

Unlike general-purpose coloured LED lamps, Hella NaviLED lights use precision optical systems specifically designed to produce the controlled sectors and light intensity required for marine navigation.

This makes them purpose-built navigation equipment for yachts and powerboats rather than simply coloured exterior boat lights.

Ultra-Low Power Consumption

The Hella NaviLED Compact Port and Starboard lights consume less than 2 watts combined.

Low electrical consumption is particularly valuable aboard boats where navigation lights may operate continuously for many hours.

This makes the NaviLED pair particularly attractive for:

• Sailing yachts
• Cruising yachts
• Launches
• Powerboats
• Fishing boats
• Boats operating overnight
• Vessels relying heavily on battery power

For cruising yachts in particular, reducing continuous overnight electrical loads can help conserve valuable battery capacity.

12V & 24V Multivolt Operation

Hella Marine's Multivolt technology allows the NaviLED Port and Starboard lights to operate with common 12V and 24V marine electrical systems.

This makes the pair suitable for a broad range of New Zealand vessels and simplifies selection when replacing older navigation lights.

Built-in electrical protection also helps protect the lights against voltage spikes and reverse polarity.
