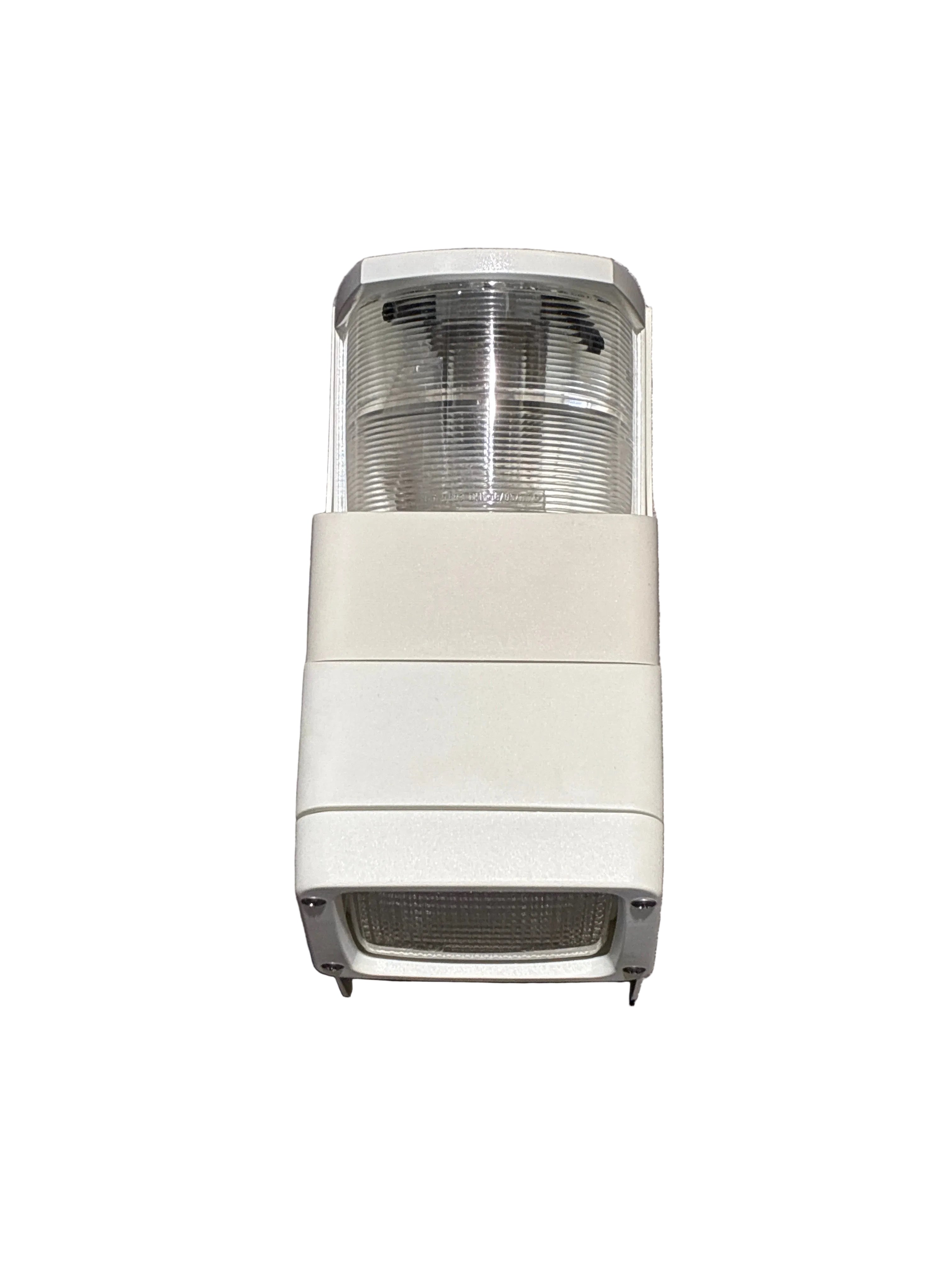

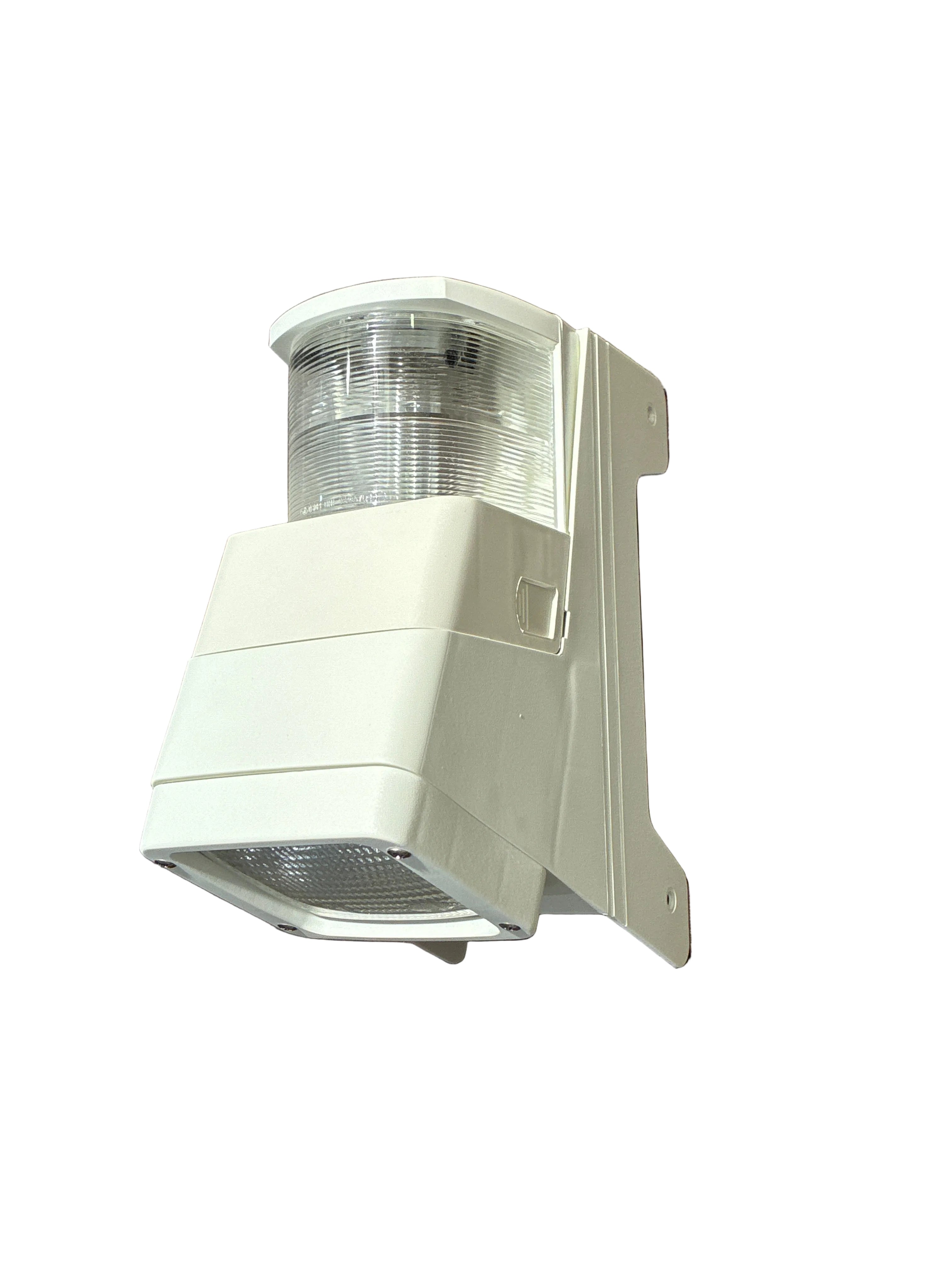

Hella Marine 8504 Masthead & Deck Combination Light – White, 12V
Upgrade your yacht’s navigation and deck lighting with the Hella Marine 8504 Masthead & Deck Combination Light – White, a dual-purpose marine light combining a masthead navigation lamp and a powerful deck floodlight in one robust housing.
Designed for vessels under 20 metres in length, the Hella 8504 Series provides a 3 nautical mile masthead navigation light together with a separate halogen floodlight for illuminating the deck, foredeck and working areas aboard your boat.
Featuring Hella Marine’s Free Form reflector technology, flexible mast mounting arms and a UV-resistant white housing, this combination light is designed for reliable use in demanding marine environments.
The masthead navigation light and deck floodlight require separate electrical wiring, allowing them to be operated independently.
Ideal for sailing yachts, cruising boats and compatible recreational vessels, the Hella 8504 is a practical solution for boat owners wanting both navigation lighting and deck illumination from a single mast-mounted fitting.
Available online from Barton Marine NZ, supplying Hella Marine navigation lights, marine electrical equipment and yacht chandlery throughout New Zealand.
Key Features
● Genuine Hella Marine 8504 Series combination light
● Masthead navigation light and deck floodlight in one housing
● White UV-resistant, impact-resistant housing
● Designed for vessels under 20 metres
● 3 nautical mile masthead light visibility
● 12V electrical system
● Powerful 55W halogen deck floodlight
● Hella Marine Free Form reflector technology
● Flexible mounting arms to suit various mast profiles
● Navigation light and floodlight wired separately
● Stainless-steel metal components
● Glass lens bonded to the reflector for moisture and dust resistance
● IPX4 water ingress protection rating
● Suitable for compatible yacht mast installations
● Designed for marine navigation and deck illumination
Technical Specifications
|Specification |Details |
|------------------------|-----------------------------------------------------|
|Brand |Hella Marine |
|Product Series |8504 |
|Product Type |Masthead Navigation Light & Deck Floodlight |
|Housing Colour |White |
|Manufacturer Part Number|2LT 998 504-011 |
|Nominal Voltage |12V DC |
|Vessel Length |Under 20 metres |
|Masthead Light Range |3 Nautical Miles |
|Deck Floodlight |12V / 55W Halogen |
|Masthead Lamp |12V BAY15d |
|Floodlight Bulb Type |H3 / PK22s |
|Reflector |Hella Free Form Technology |
|Housing |UV- and Impact-Resistant Reinforced Plastic |
|Metal Components |Stainless Steel |
|Mounting |Flexible Mast Mounting Arms |
|Electrical Connections |Separate Circuits for Navigation Light and Floodlight|
|Water Protection |IPX4 |
|Application |Yacht Masthead and Deck Lighting |
Important: Hella’s catalogue lists a 12V/10W BAY15d masthead bulb and 12V/55W H3 floodlight bulb as supplied with the 12V unit. Confirm the exact bulb contents of your stock before publishing them as included accessories.
Two Marine Lights in One Compact Housing
The Hella 8504 combines two useful lighting functions in one mast-mounted unit.
Masthead Navigation Light
The upper navigation light provides a white masthead light with a manufacturer-specified visibility range of 3 nautical miles.
It is intended for use as part of an appropriately configured navigation lighting system.
Deck Floodlight
The lower floodlight illuminates the deck and working areas of the boat.
This is particularly useful when carrying out tasks in low-light conditions, such as preparing to anchor, handling lines or working on the foredeck.
Combining both functions in one housing helps reduce the number of separate lighting fittings required on the mast.
3 Nautical Mile Masthead Navigation Light
The Hella 8504 incorporates a masthead navigation lamp designed to provide a specified visibility range of 3 nautical miles.
Correct navigation lighting is important when operating a vessel between sunset and sunrise or in conditions of restricted visibility.
The appropriate light arrangement depends on the vessel’s length, type and operating conditions.
The 8504 must be installed in the correct position and used as part of a compliant navigation lighting arrangement.
A masthead light is not the same as an all-round white anchor light.
Powerful 55W Deck Floodlight
The integrated deck floodlight uses a 12V / 55W halogen lamp to illuminate deck areas.
This makes the Hella 8504 particularly useful for sailing yachts where visibility around the foredeck, mast base and working areas is important.
Typical applications include:
● Illuminating the foredeck
● Handling anchor equipment
● Preparing mooring lines
● Working around the mast
● General deck maintenance
● Improving visibility during night-time deck operations
The floodlight is a working light and should not be used in a way that obscures required navigation lights or interferes with safe lookout.
Hella Free Form Reflector Technology
The Hella 8504 features the manufacturer’s Free Form reflector technology.
This reflector design is intended to provide effective distribution of light from the deck floodlight.
By directing illumination across useful working areas, the floodlight helps improve visibility when handling equipment aboard the boat.
It is a practical feature for sailors who regularly use their vessels in the evening or early morning.

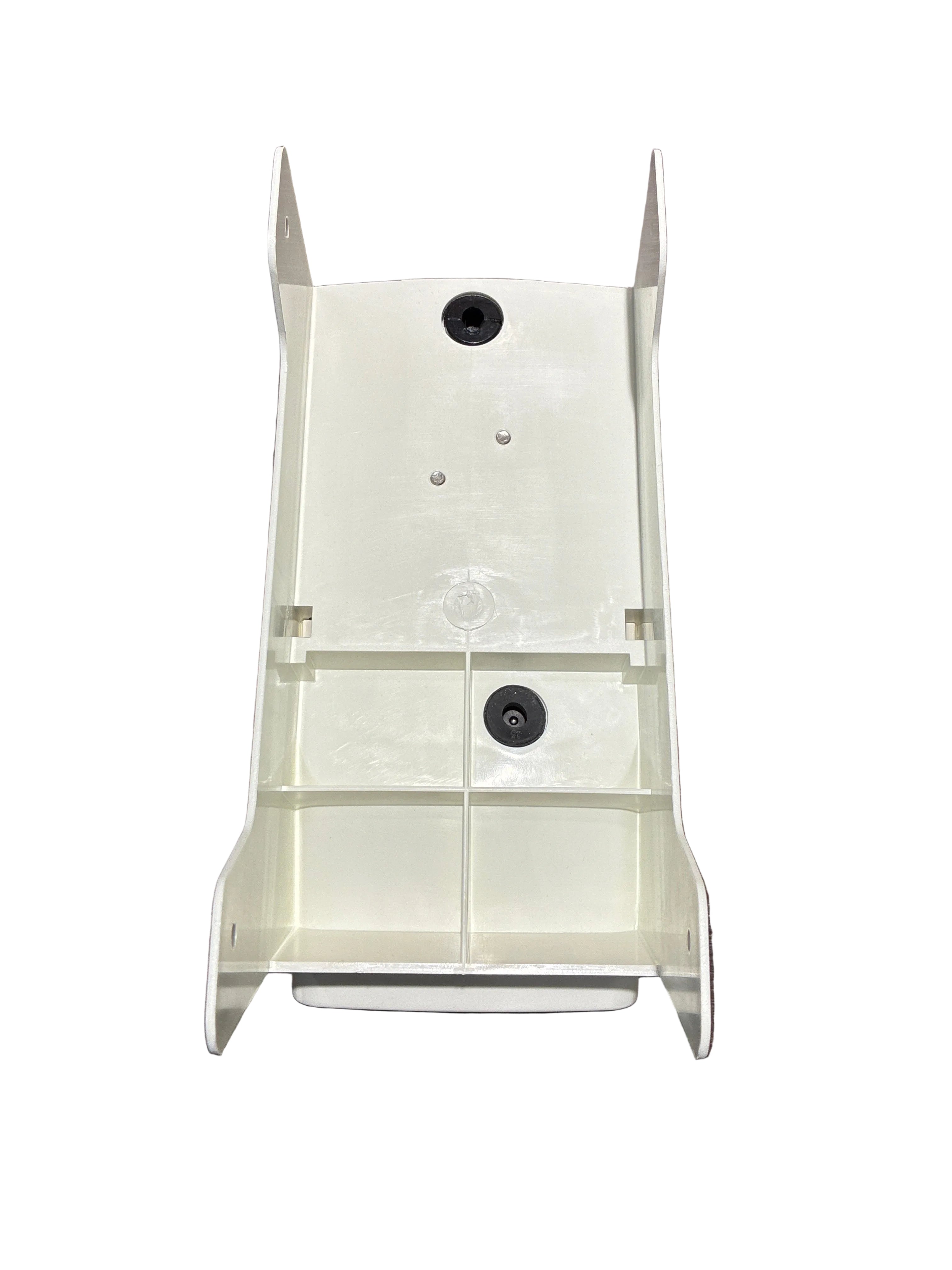

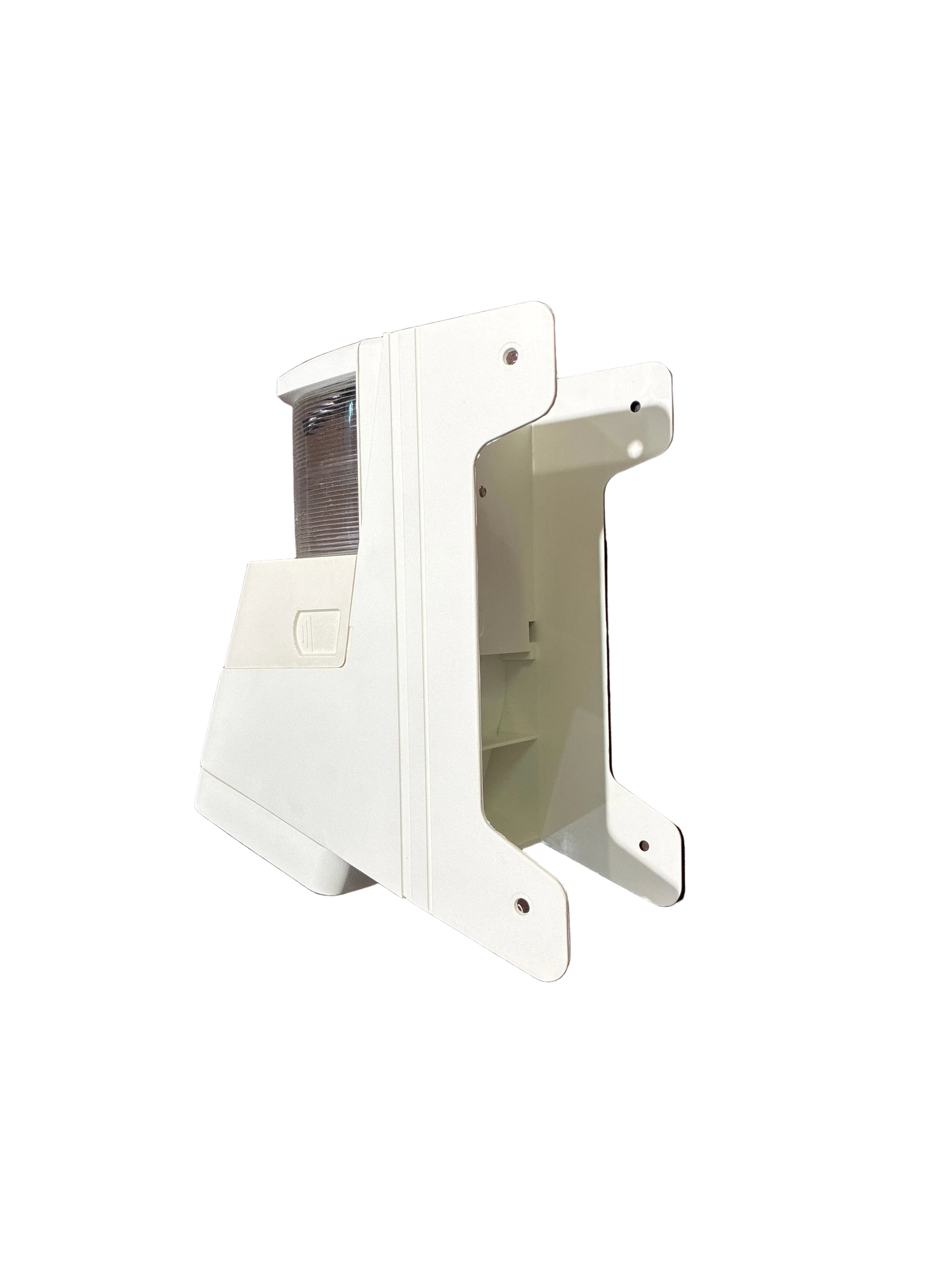

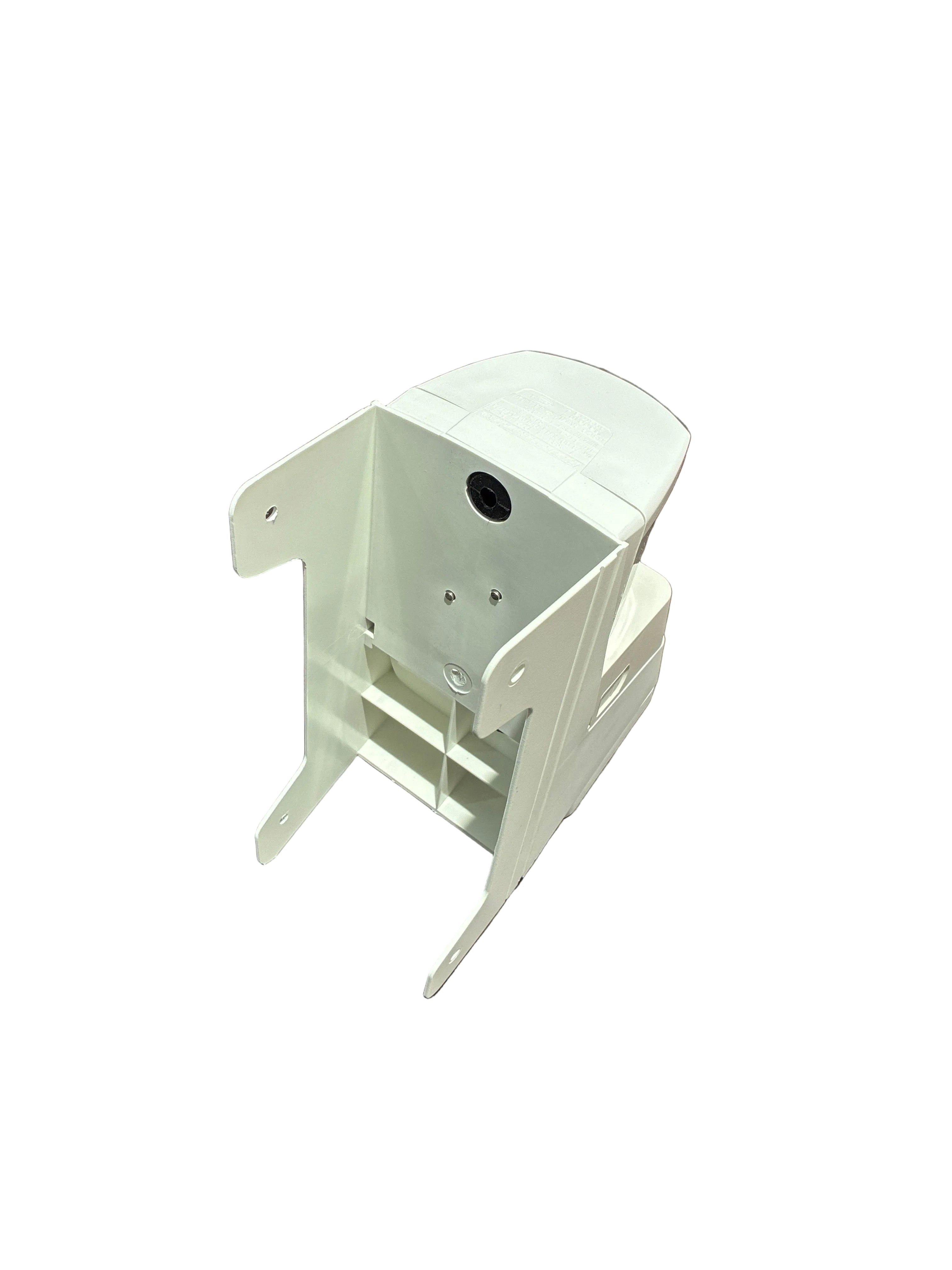

Flexible Mast Mounting Arms
The Hella 8504 includes flexible mounting arms designed to accommodate a variety of mast profiles.
This makes the combination light suitable for a range of compatible yacht mast installations.
Before purchasing, confirm:
● Mast shape and available mounting space
● Mounting hole positions
● Cable routing
● Clearance around rigging and fittings
● Correct navigation light positioning
● Suitability of the mounting surface
Follow the manufacturer’s installation instructions and use suitable marine fasteners and wiring.
