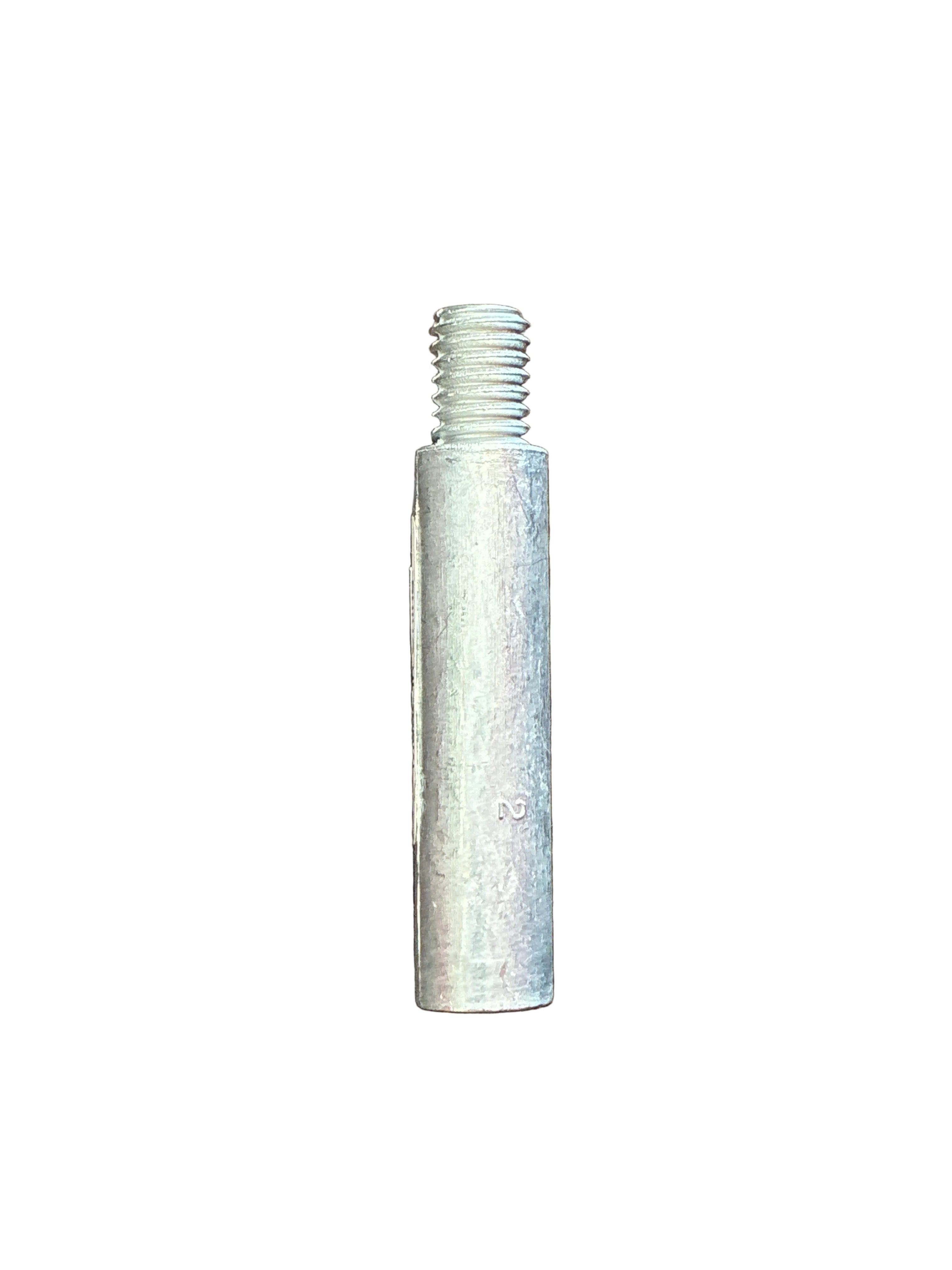

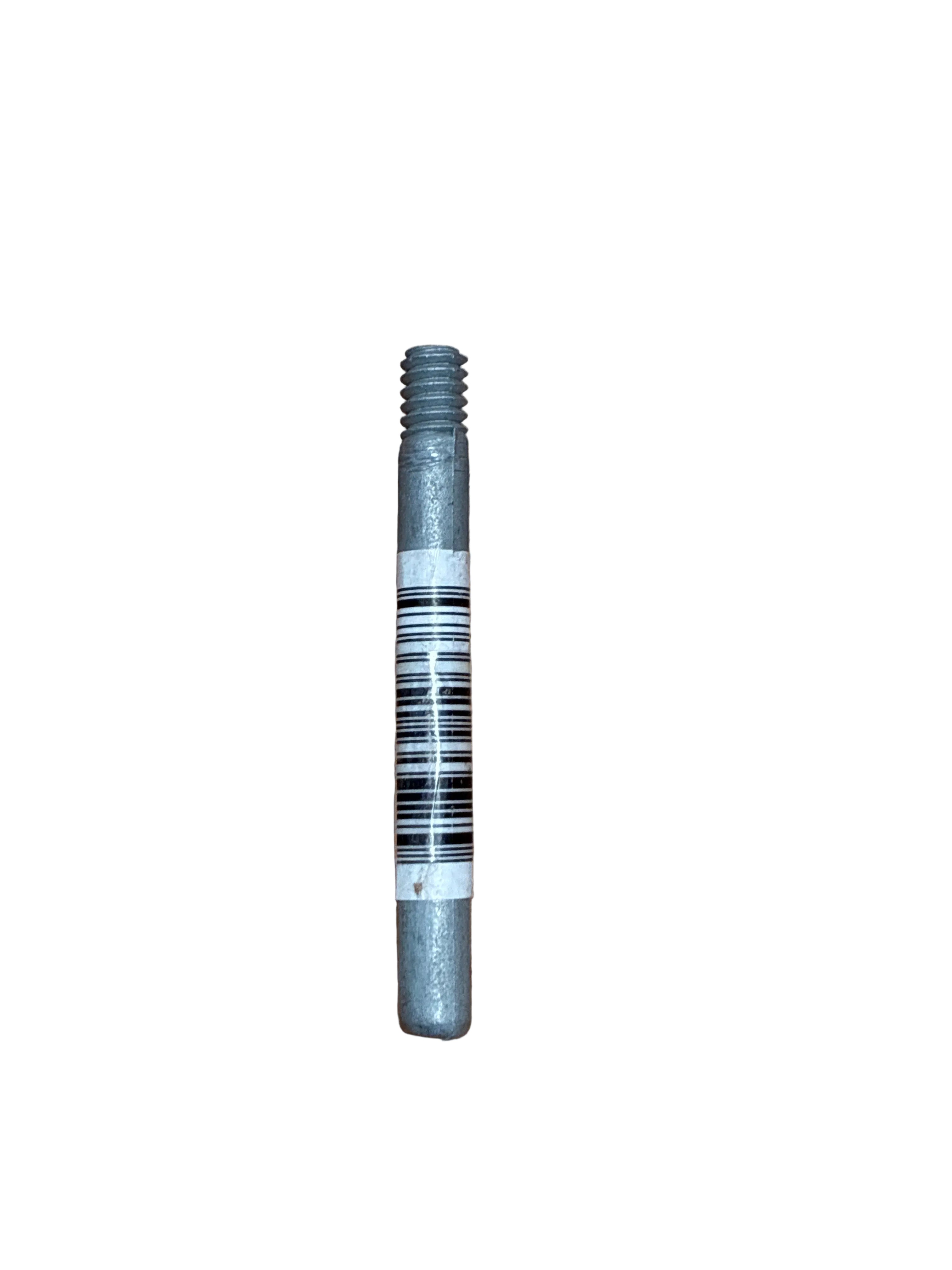

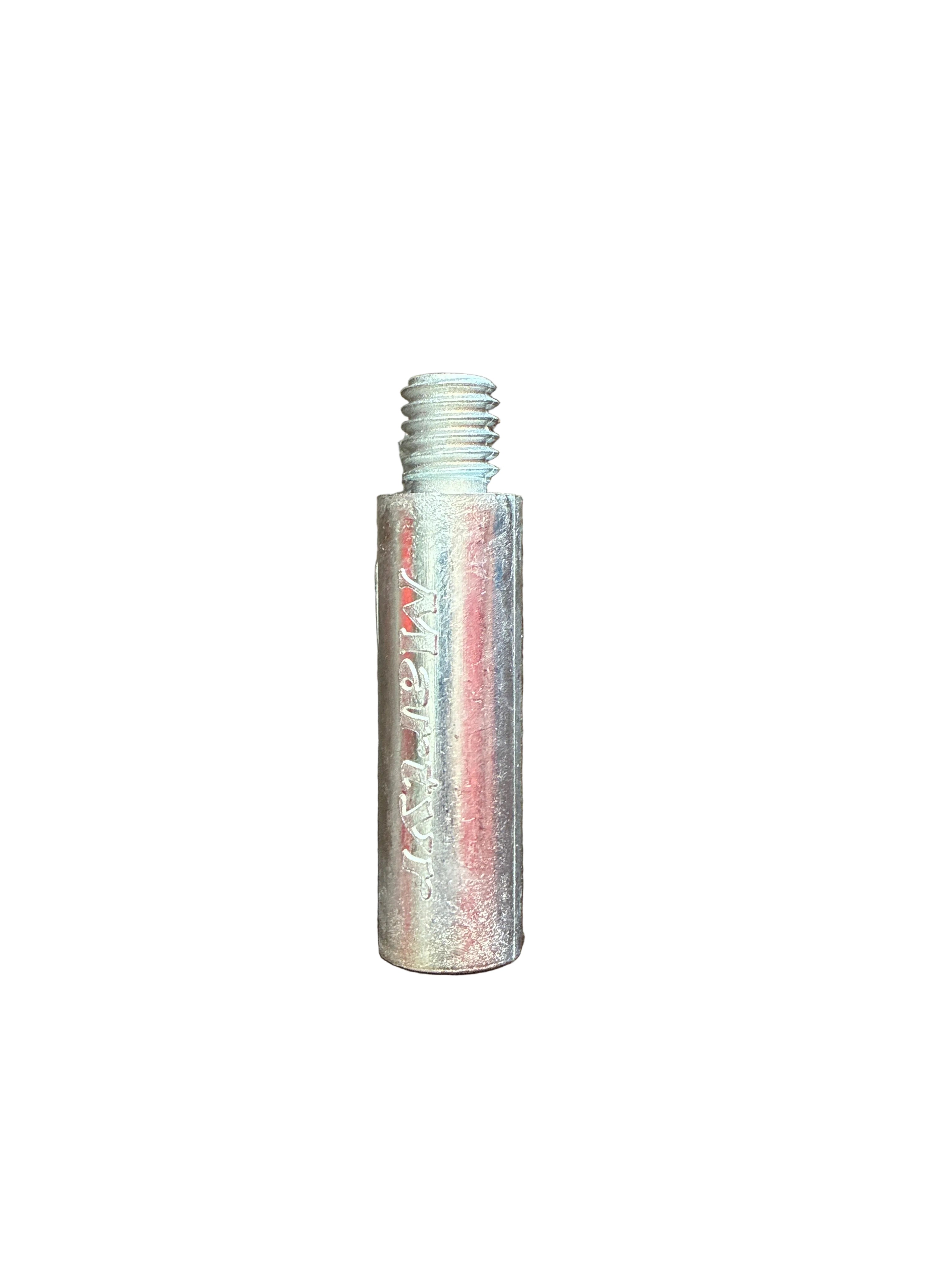

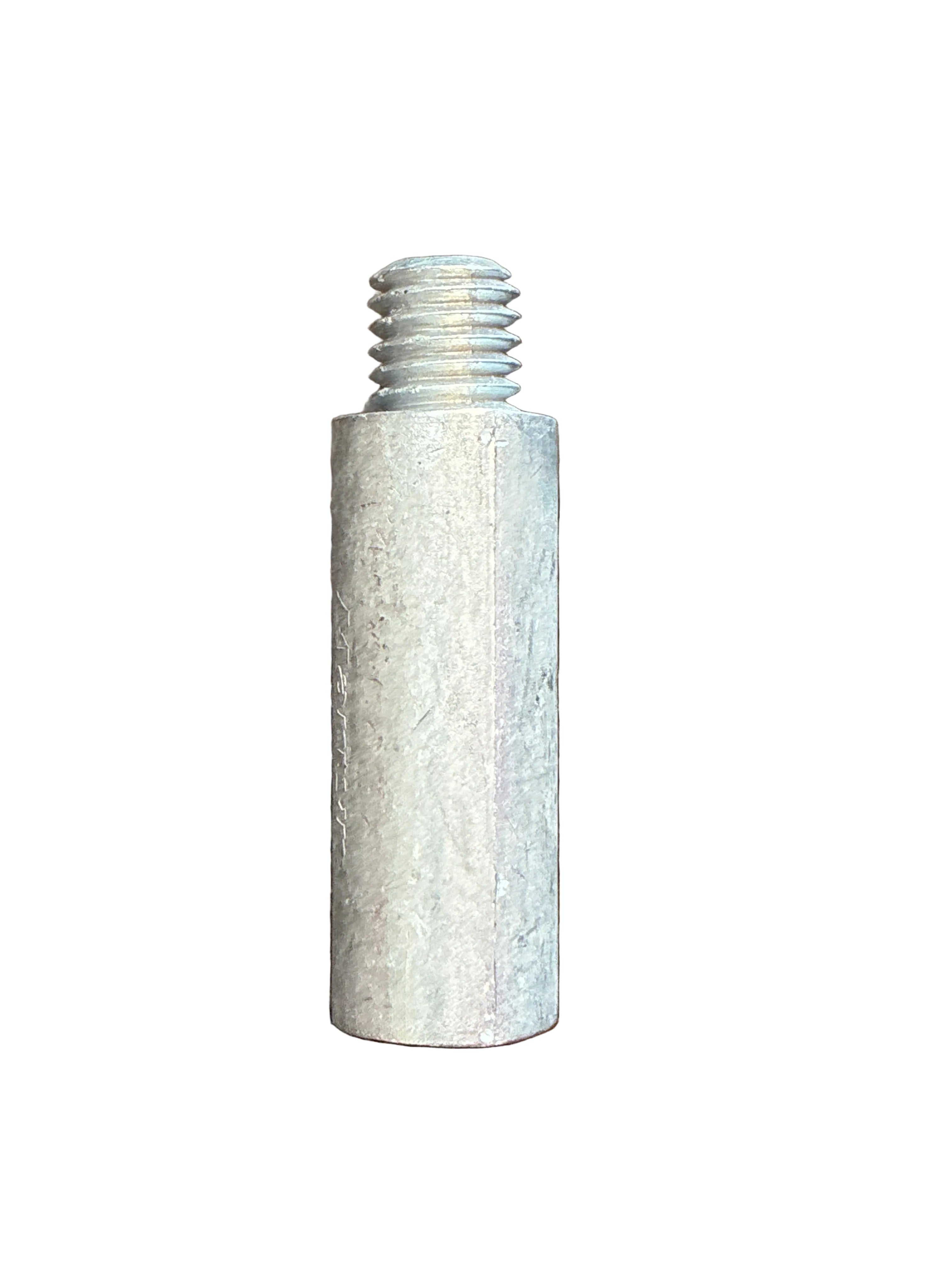

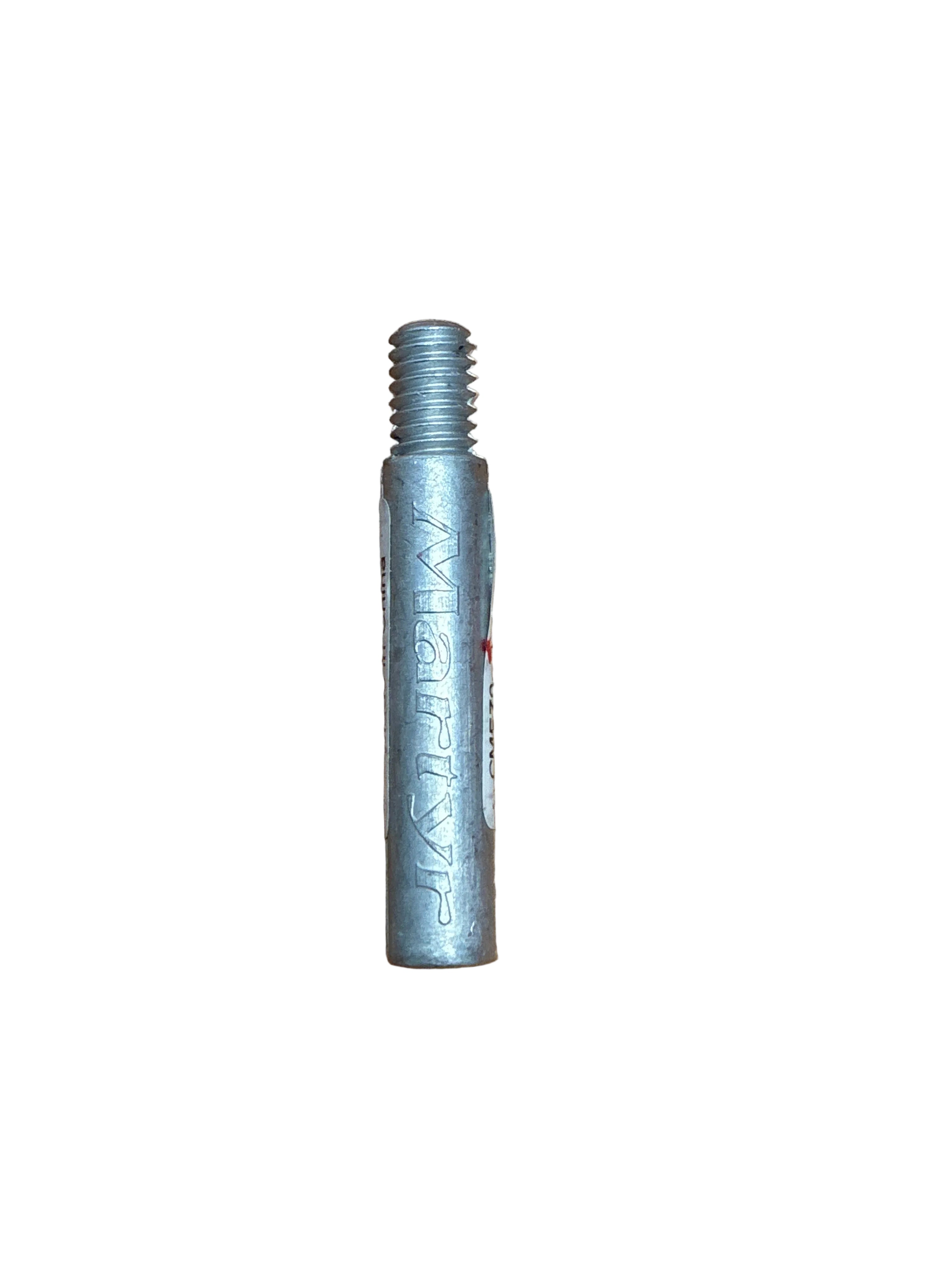

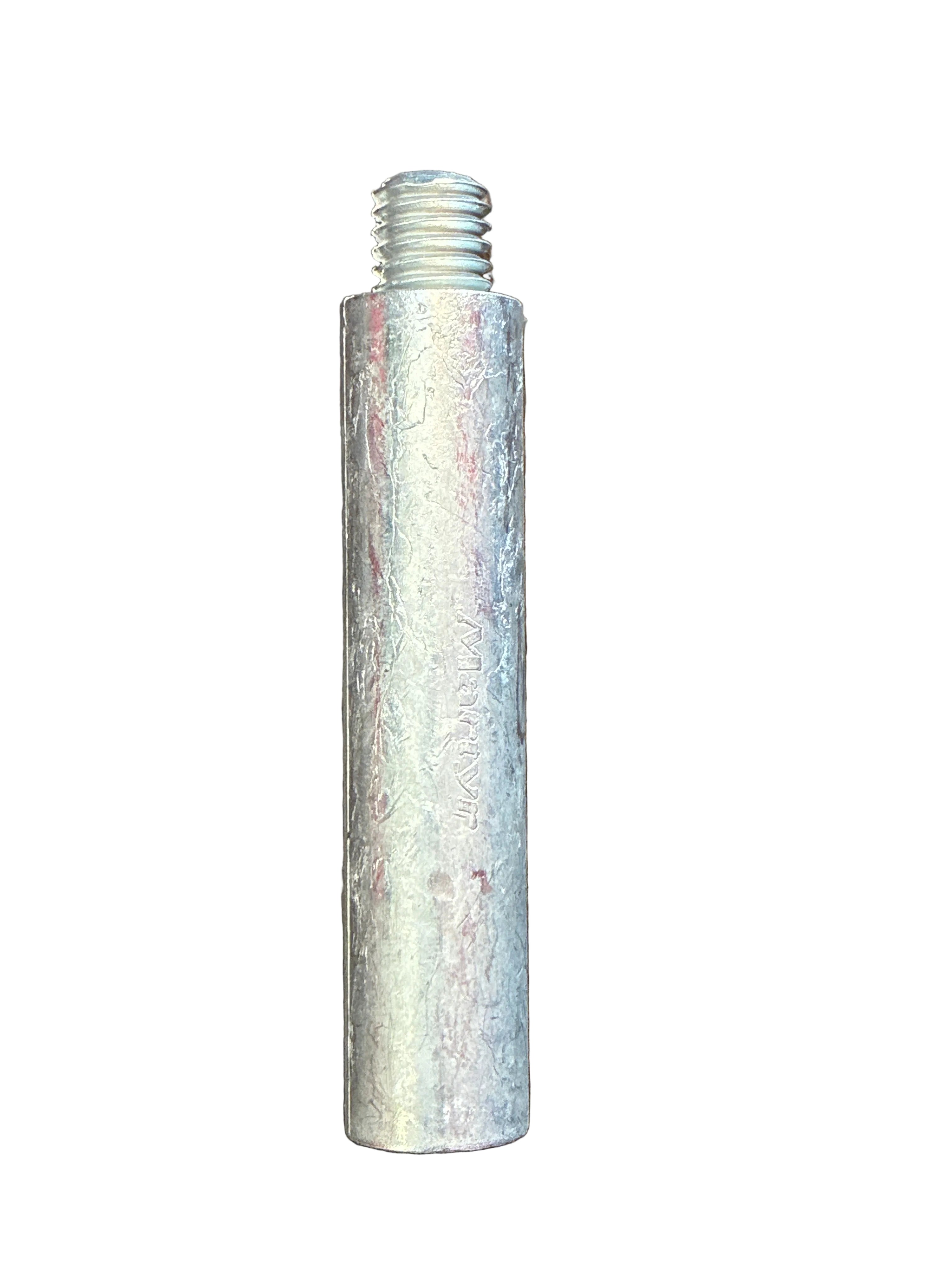

Engine Cooling System Replacement Anodes (often called pencil anodes) are essential components designed to protect your marine engine’s cooling system from galvanic corrosion. Installed inside heat exchangers and cooling passages, they act as sacrificial metal, corroding in place of critical engine components.

These anodes are made from zinc, being the most common choice for saltwater applications.

Each anode is threaded so can be installed into a brass plug and installed directly into the cooling system, where it protects internal metal surfaces such as heat exchangers, oil coolers, and engine blocks.

Regular replacement is critical—these anodes gradually dissolve over time and must be inspected frequently to maintain protection.

Key Features

• Protects engine cooling systems from corrosion and electrolysis
• Sacrificial design – anode corrodes instead of engine components
• Commonly used in heat exchangers and raw water cooling systems
• Available in zinc
• Supplied with threaded end for easy installation
• Essential for diesel and petrol marine engines
• Wide range of sizes to suit Yanmar, Volvo, Cummins, etc.

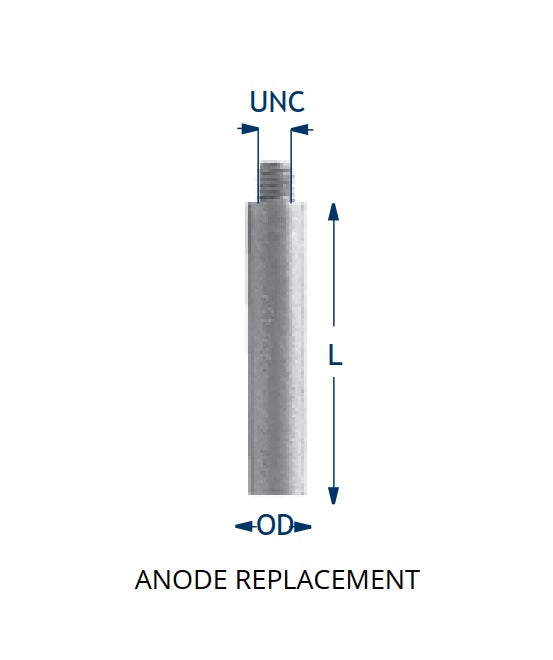

Specifications

• Type: Pencil anode / engine cooling anode
• Materials: Zinc (saltwater)
• Mounting: Threaded plug (various sizes e.g. 1/4", 3/8", 1/2")
• Length: Approx. 45–65mm
• Application: Heat exchangers, oil coolers, engine cooling systems

Why These Anodes Matter

For New Zealand boat owners, saltwater corrosion is one of the biggest causes of engine damage. Engine cooling systems combine dissimilar metals, heat, and seawater, creating ideal conditions for corrosion.

Replacement anodes provide a simple, low-cost solution to protect expensive components like:

• Heat exchangers
• Oil coolers
• Engine blocks

Neglecting them can lead to serious internal corrosion and costly repairs, making them one of the most important maintenance items on any vessel.
