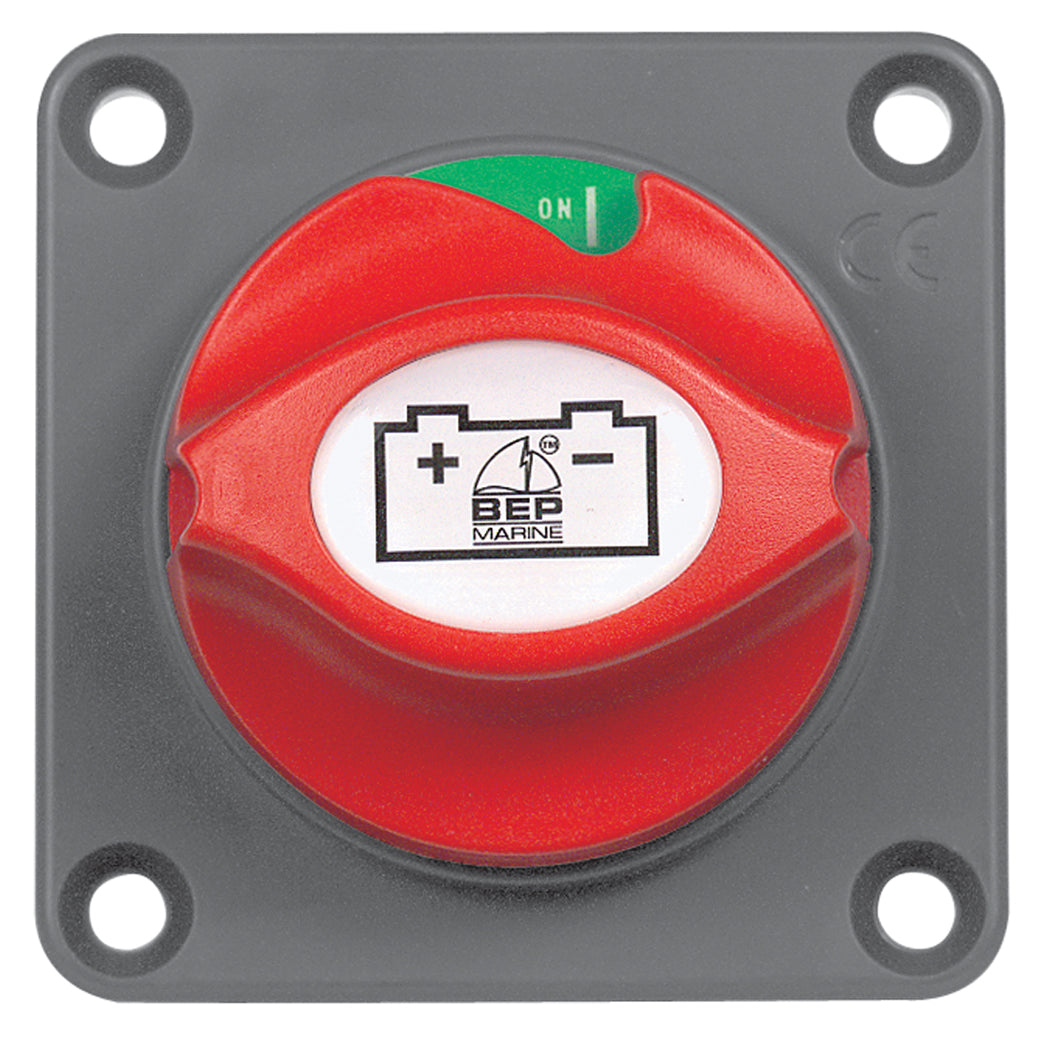

BEP 701-PM Battery Switch Panel Mount

BEP 701 Battery Switch - Panel Mount

The panel mount range of battery switches are designed specifically for panel mount applications. This range gives a very compact, versatile solution with the following features:

Features:
• Fits standard BEP battery switch label range.
• Removable key
• CSK recessed for surface mount application
• Standard 2 1/16" hole cut out (Same as standard gauge hole)
• Ignition Protected
• Full access for cables with no restrictions
• Fit into Contour Connect Panel

701 Specifications:
•Continuous Rating: 275 Amps DC
•Intermittent Rating: 455 Amps DC
•Cranking Rating: 1250 Amps DC
•Voltage Rating: 48 Volts DC
•Operation: On/Off
•Mounting: Recessed or Surface
•Ignition protected
•Termination Stud Size: 2 x 10 mm (3/8 inch)
•Dimensions: 69 x 69 x 75h mm (2.75 x 2.75 x 3h inches)
•Tin plated copper studs and nuts
