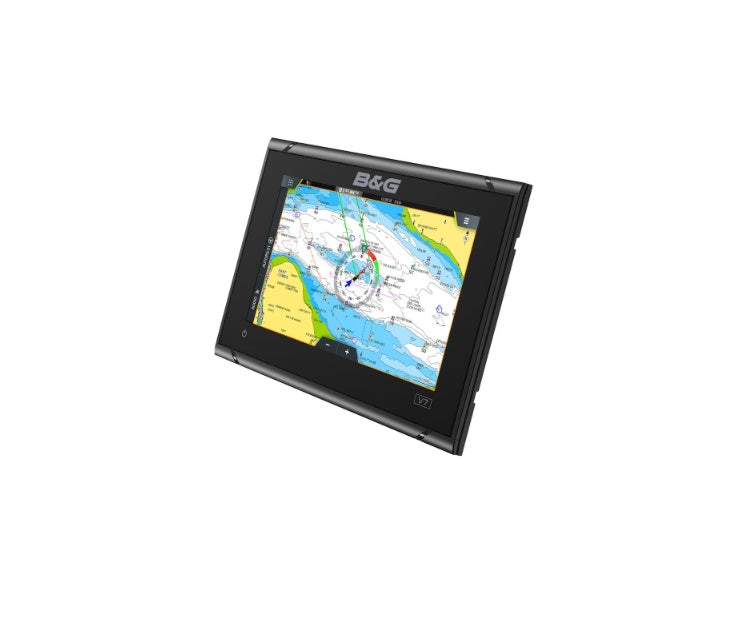

B&G Vulcan 7R Sailing Chartplotter – 7" GPS, Wi-Fi & NMEA 2000

The B&G Vulcan 7R Sailing Chartplotter is a powerful yet easy-to-use 7-inch multifunction display designed specifically for sailors, combining GPS chartplotting with B&G's dedicated cruising and racing features.

Featuring a bright 7-inch multi-touch display, built-in 10Hz GPS, Wi-Fi, NMEA 2000 networking and B&G sailing functions including SailSteer, Laylines, SailingTime and RacePanel, the Vulcan 7R is an excellent navigation display for coastal cruising, yacht racing and general sailing.

The Vulcan can also become the centre of a wider B&G marine electronics system, integrating with compatible wind, speed and depth instruments, B&G autopilots, AIS, radar and sonar equipment.

Compact enough for smaller yacht helms while offering powerful sailing-specific functionality, the B&G Vulcan 7R is a great choice for New Zealand sailors looking to upgrade their onboard navigation and sailing electronics.

Available from Barton Marine NZ, supplying B&G sailing instruments, chartplotters and marine electronics to New Zealand boaties.

Key Features

• 7-inch B&G sailing chartplotter
• Bright 1200-nit colour display
• 800 × 480 screen resolution
• Easy-to-use multi-touch interface
• Built-in 10Hz GPS
• Dedicated B&G SailSteer
• SailingTime
• RacePanel
• Layline display
• Integrated Wi-Fi
• Integrated Bluetooth
• NMEA 2000 connectivity
• B&G autopilot integration
• Radar compatible
• ForwardScan compatible
• Integrated CHIRP and DownScan sonar capability
• AIS data display via NMEA 2000
• Instrument data display
• MicroSD chart card slot
• IPX6 / IPX7 waterproof rating
• Bracket or panel mounting
• Designed specifically for cruising and racing yachts
• B&G SKU 000-14082-001

A Chartplotter Designed for Sailors

Unlike a general-purpose marine chartplotter, the B&G Vulcan 7R has been developed specifically around the needs of sailors.

B&G's dedicated sailing software provides useful information for both cruising and racing, helping you understand your boat's performance and make better sailing decisions.

Connect compatible wind, speed, depth and heading information through NMEA 2000 and the Vulcan becomes much more than a GPS chartplotter – it becomes a central sailing information display.

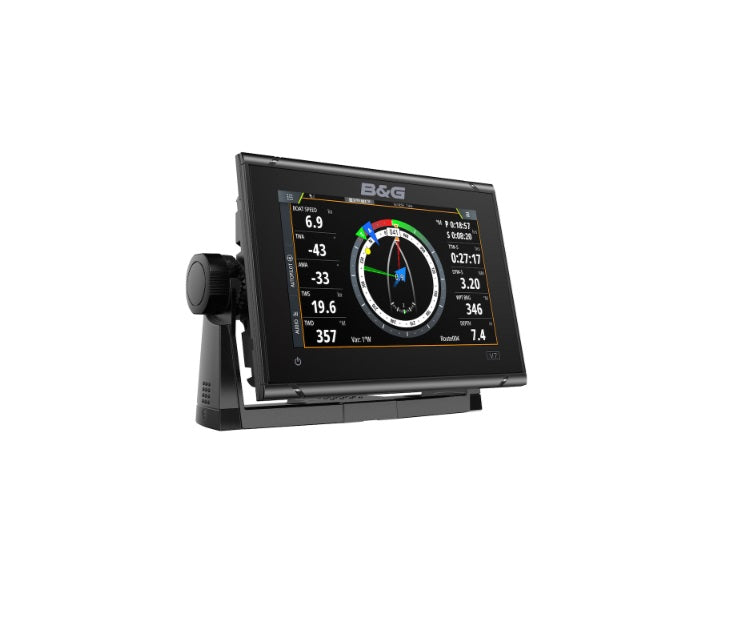

B&G SailSteer

SailSteer brings important sailing information together on one easy-to-understand display.

Depending on the instruments and sensors connected to your network, SailSteer can provide a graphical representation of information such as:

• Heading
• Wind direction
• Laylines
• Tide
• Bearing to waypoint
• Course over ground

Rather than checking multiple instrument displays individually, SailSteer helps bring key sailing information together in one place.

For cruising sailors this can make passage information easier to interpret, while racing sailors can use the additional sailing data to help make tactical decisions.

Laylines & SailingTime

The Vulcan 7R includes dedicated Layline and SailingTime functionality.

Laylines can help sailors visualise the course required to reach a waypoint based on current sailing conditions.

This is particularly useful when sailing upwind, where the most direct route to a destination may require multiple tacks.

B&G's SailingTime functionality is designed to provide arrival calculations that account for the realities of sailing rather than simply assuming a straight-line powered route.

Compatible with the C-Map Discover NZ Chart
