Jabsco

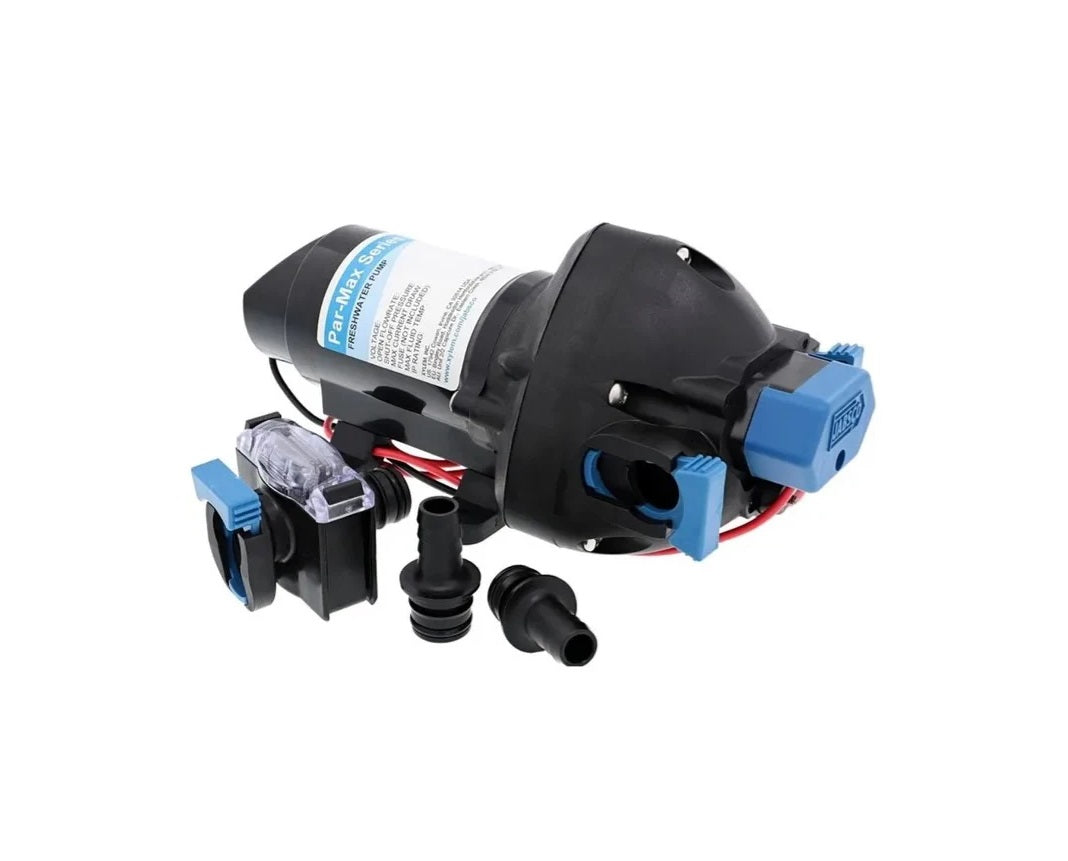

JABSCO Pressure Pump 3 - 12V 11.0LPM 40PSI
Par Max 3 pressure-controlled pump
12V DC
- Connections: for 13mm (½”) bore hose or Hep20 push-fit connectors CW193
- Dimensions: 230mm long, 152mm wide, 110mm high
- Fuse Size: 10 amp
- Maximum Current: 4.4 amp 12V
- Output: 11 litres/minute (2.4 gallons/minute) open flow
- Packaged Dimensions: L:17.00 x H:11.00 x W:34.00cm
- Actual Weight: 1.80 Kg (Approx. 2.30 Kg packed)
PRESSURE SWITCH - cuts in at 1.4bar (20psi) - cuts out at 2.7bar (40psi)
Efficient, high-flow, self-priming pump serving 2 or more outlets
Multi-diaphragm design self primes to 1.8m vertical lift, can run dry without damage
Supplied with snap-in ports for hose or Hep20 connectors
Quiet running
Motor protected by automatic thermal overload cut-out
Includes bypass feature to provide smooth, quiet flow. No need for accumulator tank
