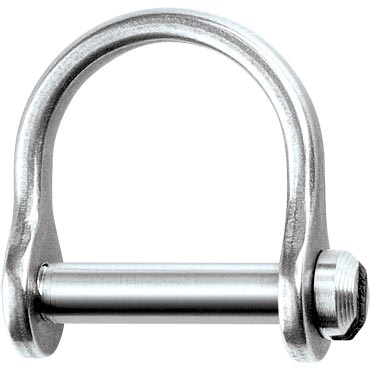

Ronstan RF1850S 1/8" Pin Wide D Shackle – 316 Stainless Marine Fitting

The Ronstan RF1850S Wide D Shackle with a 1/8" (3.2mm) pin is a compact and lightweight rigging component made from premium 316-grade stainless steel, ideal for small boat and dinghy applications. Its corrosion-resistant construction ensures long-lasting performance in saltwater environments.

Designed with a wide internal body, this shackle provides additional clearance for narrow webbing, dual lines, or tight-fitting hardware connections. The forged body and secure pin make it a reliable choice for light-duty sailing hardware and deck fittings where space is limited but strength is still required.

Specifications:

• Pin Diameter: 3.2mm (1/8")

• Internal Length: 17.0mm

• Internal Width: 9.0mm

• Material: 316 stainless steel

• Breaking Load: 500kg

• Working Load Limit: 250kg

• Design: Wide D shape for increased clearance in compact applications

• Applications: Dinghy rigging, light-duty marine hardware, sailboat fittings

Perfect for sailors seeking a compact, corrosion-resistant shackle that performs reliably on smaller craft. Available now from Barton Marine NZ – your official supplier of Ronstan sailing hardware.
