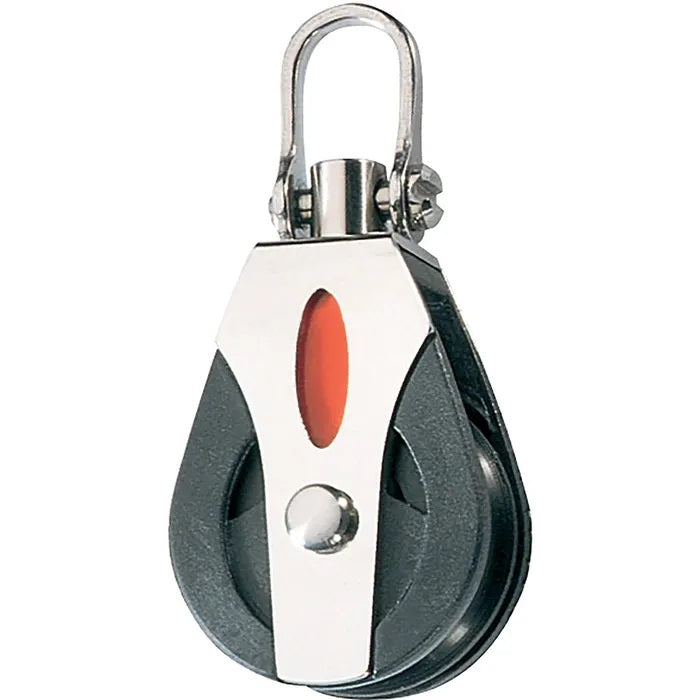

Ronstan RF30100 30mm Ball bearing Single swivel shackle pulley
$40.80
/
Tax included.
Ronstan RF30100 30mm Ball bearing Single swivel shackle pulley
Ronstan 30mm Series 30 ball bearing single with shackle RF30100 FEATURES:
- Low friction 2-stage ball bearing system provides consistent performance over the full working load range.
- High static and dynamic load capacity.
- Light weight
- Versatile head fittings
Ronstan RF30100 30mm Ball bearing Single swivel shackle pulley specifications:
- Sheave Ø - 30 mm
- Max. Rope Ø - 8 mm
- Max. Cable Ø - - mm
- Pin Ø - 4.0 mm
- M.W.L. - 300 kg
- B. L. - 750 kg
- Weight - 34 g
PRODUCT INFORMATION
- Sheaves running on Acetal or Torlon® ball bearings provide high performance & low friction. The 2-stage ball bearing system provides consistent performance over the full load range.
APPLICATIONS
- Primary lead blocks on dinghies and catamarans
- Control lines on larger yachts
MATERIALS
-
U.V. stabilised Acetal sheaves - Acetal ball bearings
- Impact modified, fibre reinforced and U.V. stabilised Nylon cheeks
- Grade 316 stainless steel load straps and head fittings
- Acetal ball bearings
- UV stabilised Acetal sheave
- Grade 316 stainless steel load strap and head fitting
- Impact and UV resistant, fibre reinforced Nylon cheeks
