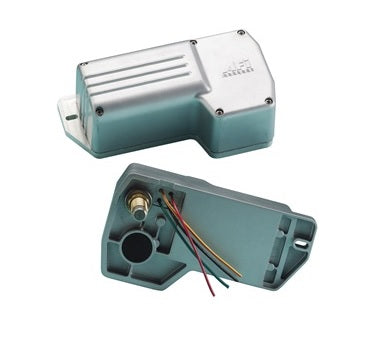

AFI 12V 2.5 Waterproof Wiper Motor (2" shaft & 110 deg sweep) AFI 12V 2.5 Waterproof Wiper Motor (2" shaft & 110 deg sweep)
AFI 12V 2.5 Waterproof Wiper Motor (2" shaft & 110 deg sweep)

AFI

AFI 12V 2.5 Waterproof Wiper Motor (2" shaft & 110 deg sweep)

$838.00
Tax included.

The 2.5 Waterproof Wiper Motor is made with a fully sealed powder coated aluminum waterproof base and housing to power a 26" Deluxe arm and Deluxe blade combination.

  • 2.5" overall shaft length (2" thread)
  • Factory pre-set sweep 110 degree, with easy adjustment to 45 degree or 60 degree
  • Chrome plated solid brass knurled drive nut with brass and stainless steel drive shaft
  • Two speed motor
  • Sealed 6" wire leads, 16 AWG
  • Adjustable right or left self parking
  • 0.625" diameter shaft (16 mm)
  • 12V
  • Coast to park
  • RF shielded circuitry
  • Retail version includes 6 amp fuse and holder (operating switch not included)
  • Measures approximately 7.875" L x 4.25" W x 3" D
  • Stall torque: 139 in-lbs (160 kgf/cm; 15.7 Nm)
  • Stall current: 9.0-10.5 amps
  • No load current: 1.0 -1.6 amps

    Maximum compatible blade length - 26"

    •
