Maxtek

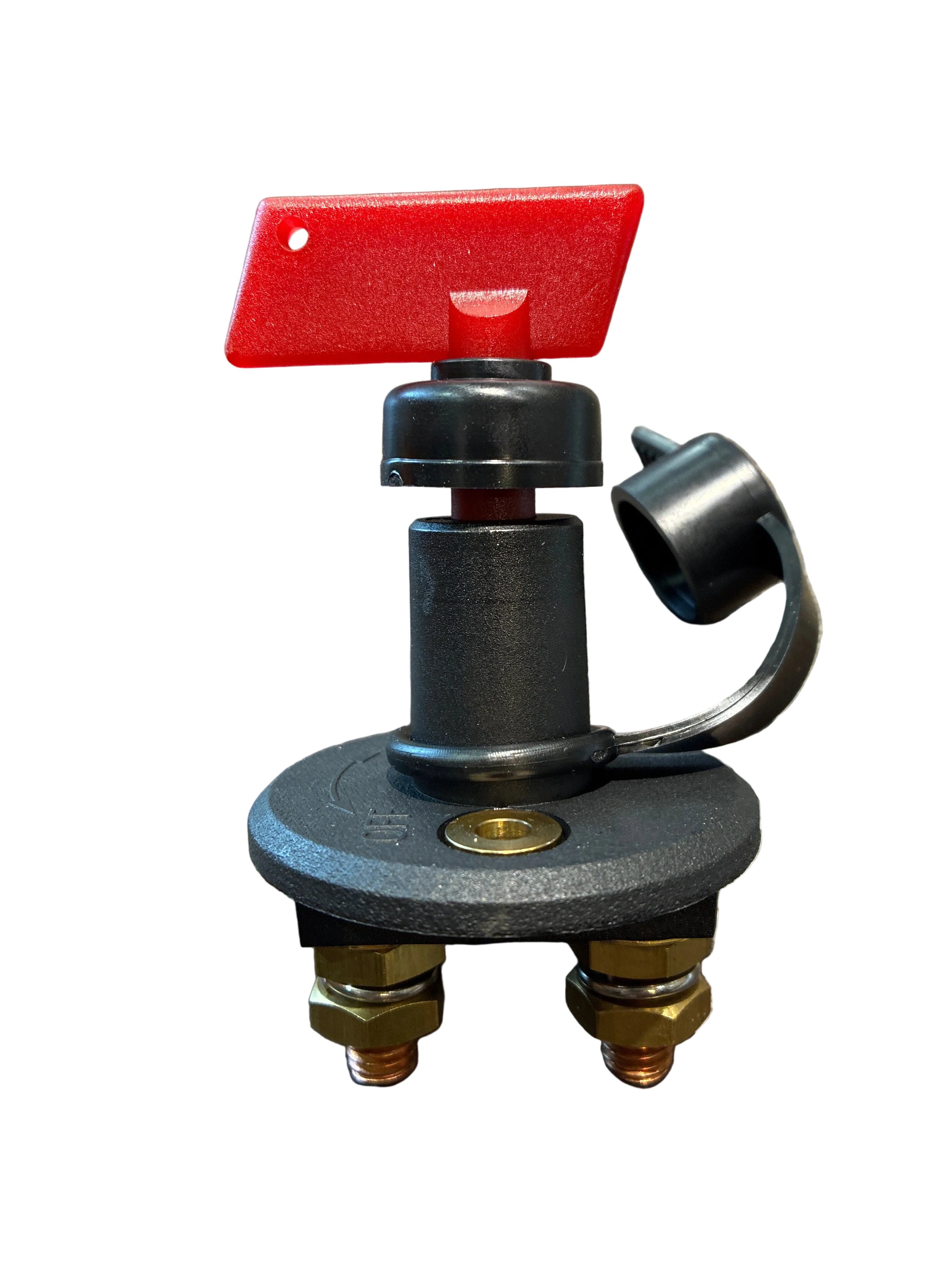

Battery Isolating Switch with Capped Key 100A 12V/24V Marine
The Battery Isolating Switch with Capped Key is a compact, heavy-duty battery disconnect switch designed to safely isolate your boat's electrical system during storage, maintenance, or emergency situations. Suitable for both 12V and 24V DC systems, this marine-grade isolator provides a simple and effective way to disconnect battery power, helping prevent unwanted battery drain while improving onboard safety and security. Comparable models are rated for 100A continuous current with high short-duration surge capacity, making them suitable for a wide range of marine applications.

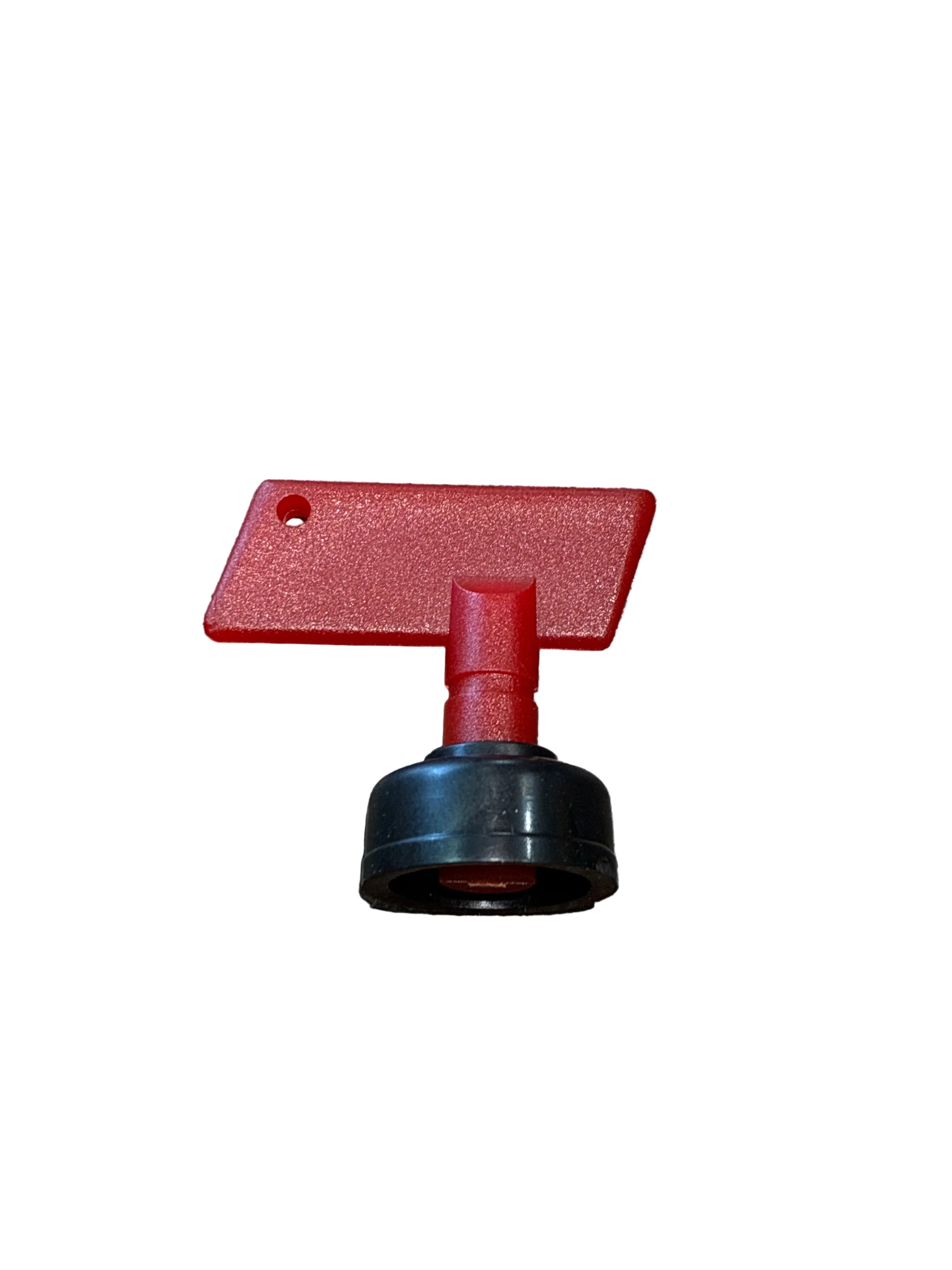

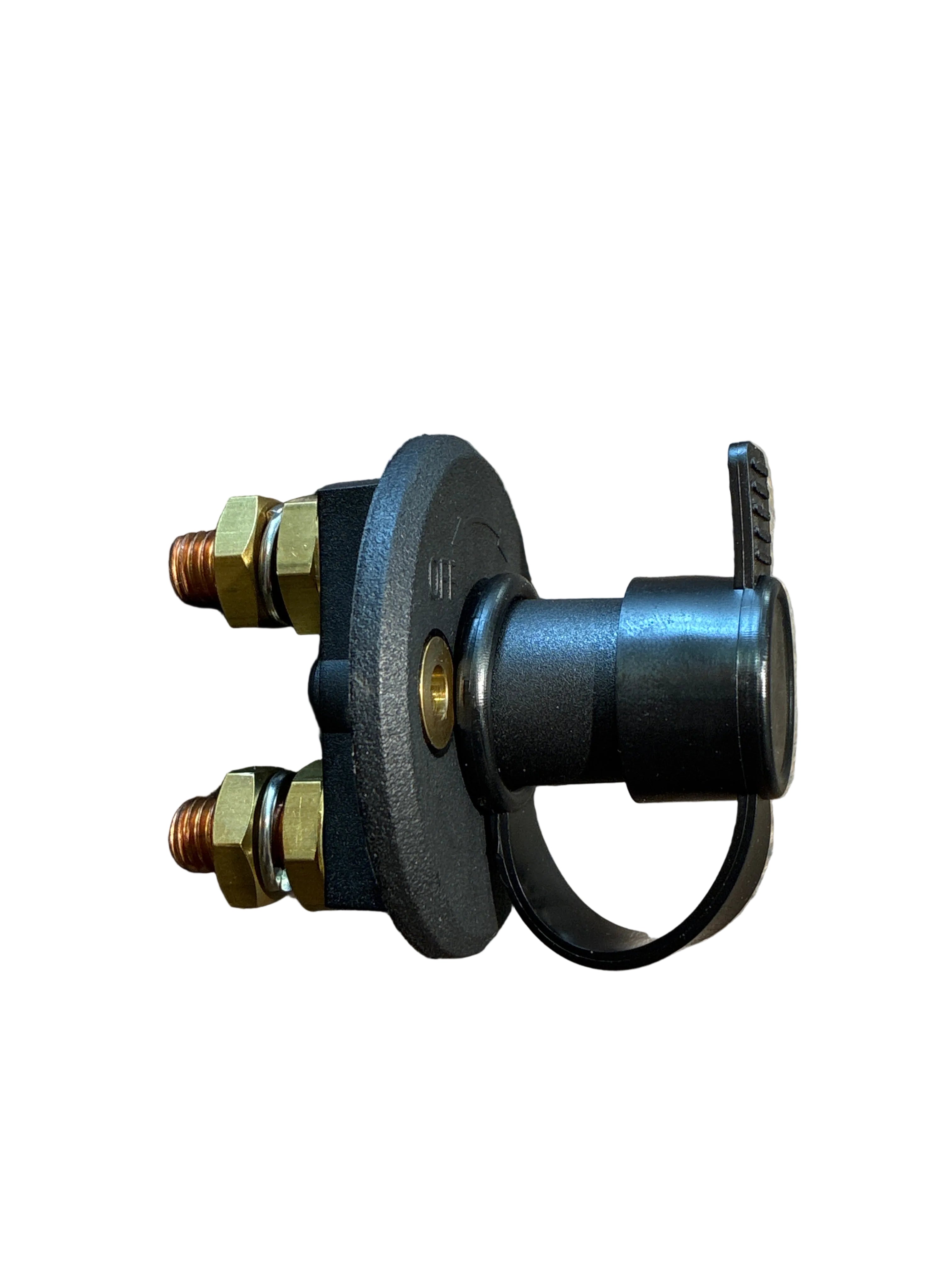

Featuring a removable PVC-capped key, the switch can only be operated when the key is inserted. Once switched to the OFF position, the key can be removed, preventing accidental operation or unauthorised use. The protective cap helps shield the switch from moisture, dirt, and UV exposure, making it ideal for demanding marine environments.
Its compact panel-mount design makes installation straightforward in boats, caravans, motorhomes, 4WDs, campervans, and other 12V or 24V electrical systems. Whether you're isolating the starting battery, house battery, anchor winch, or other high-current accessories, this battery isolator delivers reliable performance and peace of mind.
Key Features
- Heavy-duty battery isolating switch
- Suitable for 12V and 24V DC systems
- Removable PVC capped key
- Key removable only in OFF position
- Compact panel-mount design
- Water-resistant construction
- Heavy-duty brass terminals
- Helps prevent battery drain
- Ideal for marine and automotive applications
- Suitable for battery isolation and equipment isolation
- Simple ON/OFF operation
- Corrosion-resistant materials
Typical specifications include 100A continuous current, 500A intermittent (10 seconds), and M10 terminal studs, making this style of switch suitable for many marine and automotive installations.
Why Buy from Barton Marine NZ?
At Barton Marine NZ, we stock quality marine electrical products designed to withstand New Zealand's harsh boating conditions. This battery isolating switch provides a reliable, cost-effective solution for safely disconnecting battery power, protecting electrical systems, and reducing battery drain when your vessel is not in use.
Perfect for:
- Trailer boats
- Launches
- Sailing yachts
- Fishing boats
- Caravans
- Motorhomes
- Campervans
- 4WD vehicles
- Anchor winch isolation
- House battery isolation
Technical Specifications
| Feature | Specification |
|---|---|
| Product Type | Battery Isolating Switch |
| Operation | ON / OFF |
| Voltage | 12V / 24V DC |
| Continuous Rating | 100A |
| Surge Rating | 500A (10 seconds) |
| Terminal Size | M10 Studs |
| Key Type | Removable PVC Capped Key |
| Mounting | Panel or Flush Mount |
| Housing | Water-Resistant |
| Marine Suitable | Yes |
Common Applications
This battery isolator is ideal for:
- Starting battery isolation
- House battery disconnect
- Boat electrical systems
- Anchor winch isolation
- Bow thruster isolation
- Auxiliary battery systems
- Trailer boats
- Caravans and RVs
- Marine maintenance
- Theft deterrence during storage
Performance Benefits
The Battery Isolating Switch with Capped Key offers:
- Prevents unwanted battery drain
- Improves electrical safety
- Quick emergency battery isolation
- Simple and reliable operation
- Compact installation
- Corrosion-resistant construction
- Increased security with removable key
- Long service life in marine environments
Using a dedicated battery isolation switch is considered best practice for protecting marine electrical systems, allowing complete battery disconnection when the vessel is not in use while leaving installation simple and reliable.
