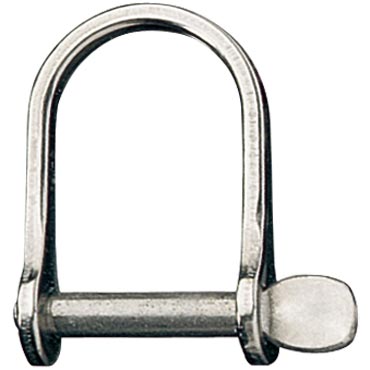

The Ronstan RF1852 Wide D Shackle (3/16" Pin) is a high-strength marine-grade fitting designed for secure and versatile rigging connections. Featuring a wider internal profile than standard D shackles, it provides additional clearance for attaching multiple components, thicker lines, or webbing.

Manufactured from 316 stainless steel, this shackle offers outstanding corrosion resistance and long-term durability in New Zealand’s harsh saltwater environments. Its coined pin head design ensures a secure, low-profile fastening, reducing the risk of snagging or accidental loosening.

Ideal for dinghies, trailer yachts, and keelboats, the RF1852 is widely used for blocks, rigging attachments, control lines, and deck hardware connections, where extra width and flexibility are required.

Key Features

• Wide D shackle design for increased internal clearance
• 316 stainless steel construction for superior corrosion resistance
• 3/16" (4.8mm) pin diameter for reliable strength
• Coined pin head for secure, low-profile fastening
• High strength-to-weight ratio for performance applications
• Ideal for multi-line, webbing, or block attachments
• Trusted Ronstan marine hardware quality

Specifications

• Pin Diameter: 4.8mm (3/16")
• Internal Length: 21mm
• Internal Width: 14mm
• Working Load Limit: 600kg
• Breaking Load: 1200kg
• Weight: Approx. 15g
• Material: 316 Stainless Steel

Why Choose the Ronstan RF1852?

For New Zealand sailors, versatility and strength are critical in rigging hardware. The RF1852’s wide body design makes it ideal where standard shackles are too narrow—allowing easier attachment of multiple fittings or larger lines without compromising load capacity.

Its corrosion-resistant build and proven reliability make it a go-to solution for both recreational and performance sailing setups across NZ coastal conditions.
