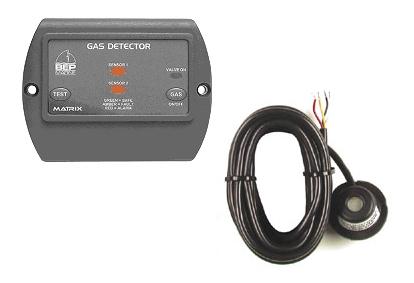

BEP 600-GDL Gas Detector and Solenoid Valve Control

The Contour Matrix Gas Detector (600-GDL) is the product of continuing research and development which BEP Marine Ltd devotes to their product range.

The BEP Detector uses microprocessor control to ensure correct sensor sensitivity.

The Detector has the capability to control two sensors which detect both LPG and Petrol , with visual and audible alarms. There is a test switch to check operation of sensors with indicators for fault detection.

It also has provision for the connection of an external alarm ,bilge blower and ability to switch a valve on. The detector is fitted with a unique "Pulse & Hold" circuit within the gas detector.

This allows the solenoid to be switched at normal voltage and held open at a reduced voltage. This reduces power consumption and heat while the gas is turned on.

Please Note: 600-GDL is not compatible with pulse and hold solenoid valve VR1. It IS compatible with the VR2.2 solenoid (purchased as an additional extra)

Specifications:

Part numbers: 600-GDL

Power Supply: 10V min to 35V max

Current Draw: 140mA with dual sensors (340mA when gas is on)

Alarm Sensitivity: 20% LEL (Lower Explosive Limit).

Current at outputs: 800mA maximum.

Sensors: Detector comes with one sensor. Order extra sensor if required.
